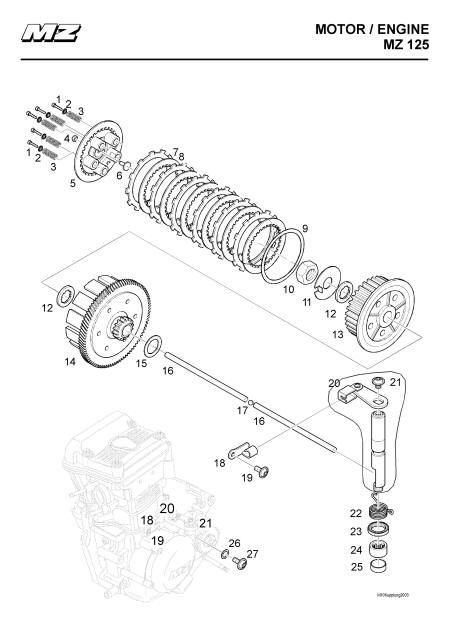

125 Clutch

# Part Number Description
1 9015183000 SCREW
2 9015182000 WASHER FOR SPRING
3 9015141000 SPRING ( x 6 )
4 9015139000 M5 LOCK NUT
5 9015181000 PRESSURE PLATE
6 9015138000 ADJUSTING SCREW
7 CK4436 MCC201-6 CLUTCH PLATE SET
8 9015136000 METAL CLUTCH PLATE
9 9015184000 SPRING WASHER
10 9015112000 NUT
11 3744007000 LOCK WASHER
12 9015203000 WASHER, CLUTCH
13 9015134000 CLUTCH HUB
14 9015133005 CLUTCH BASKET
15 3744011080 SHIM RING 28X18X0.80
  3744011090 SHIM RING 28X18X0.90
  3744011100 SHIM RING 28X18X1.00
  3744011110 SHIM RING 28X18X1.10
  3744011120 SHIM RING 28X18X1.20
16 3744005000 PUSH PIN
17 9015089000 BALL
18 3741031000 HOLDER CABLE
19 9014413000 SCREW
20 3741035005 ACTUATING LEVER
21 9014373000 BUTTON HEAD SCREW
22 3741008000 RETURN SPRING
23 9015111000 OIL SEAL
24 9015088000 NEEDLE BEARING
25 9015153000 SLIDING BUSH
26 9468141000 SEALING WASHER
27 9015167000 SCREW
