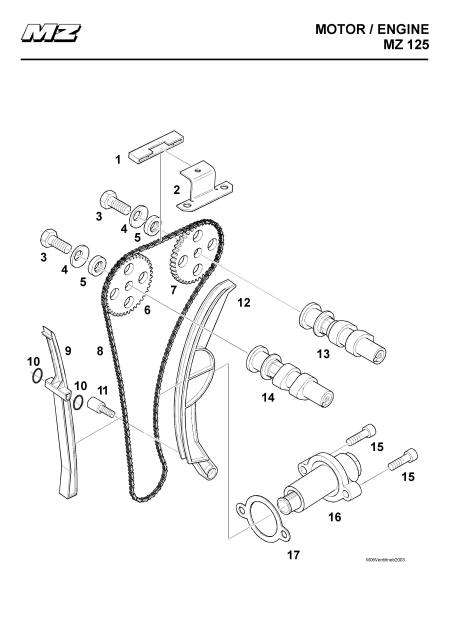

125 Camshaft

# Part Number Description
1 3742018000 PLATE
2 3742011000 RETAINER
3 9015169000 BOLT
4 9015009000 TENSION WASHER
5 3742023000 WASHER, CAM SHAFT
6 3742022000 SPROCKET CAM SHAFT
7 3742022000 SPROCKET CAM SHAFT
8 9015057000 CAM CHAIN
9 3742056000 CHAIN GUIDE
10 9015187000 O-RING
11 3741016000 SCREW, CHAIN ADJUSTER
12 3741015000 CHAIN TENSIONER
13 3742020000 CAM SHAFT INTAKE **
13 3742065000 CAM SHAFT INTAKE *
14 3742021000 CAM SHAFT EXHAUST **
14 3742066000 CAM SHAFT EXHAUST *
15 9015179000 ALLEN SCREW
16 9015172000 ADJUSTER
17 3742027000 GASKET
    * UPTO ENGINE NO 125001234
    ** UPTO ENGINE NO 125002099
