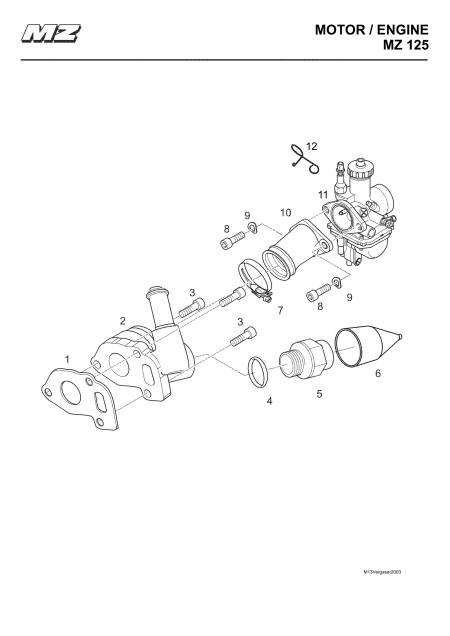

125 Carburettor Block

# Part Number Description
1 3742028000 GASKET
2 3742035005 INTAKE MANIFOLD
3 9015145000 ALLEN SCREW
4 9022149000 SEALING RING
5 9015207000 THERMAL SWITCH
6 9023208000 RUBBER CAP
7 9016134000 CLAMP
8 9412891000 ALLEN SCREW
9 9438365000 SPRING WASHER
10 3742041000 CARB CONNECTING PIECE
11 9015091000 CARBURETTOR
12 3742049000 CABLE GUIDE
