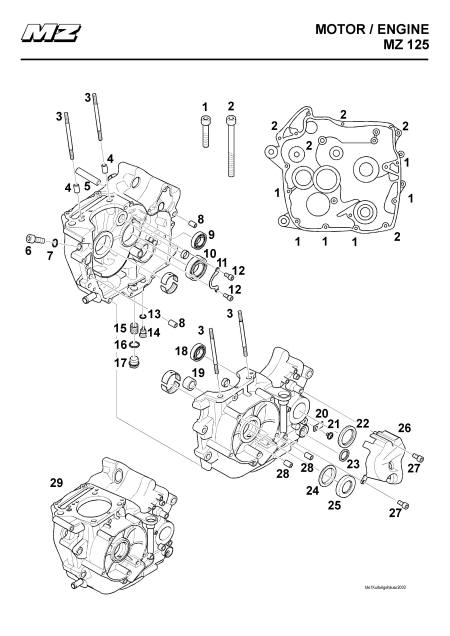

125 Crank Cases

# Part Number Description
1 9015033000 ALLEN SCREW
2 9015082000 ALLEN SCREW
3 3741019000 STUD
4 3741018000 DOWEL
5 3741012000 SHAFT STARTER MOTOR
6 9415138000 ALLEN SCREW
7 9468213000 SEALING WASHER
8 9015081000 PARALLEL PINS
9 9015119000 6204 BEARING
10 9015118000 6202 BEARING
11 3741005000 LOCK WASHER
12 9015152000 ALLEN SCREW
13 9468221000 SEALING WASHER
14 9015236000 OIL DRAIN PLUG
15 3741010000 OIL STRAINER
16 9468045000 SEALING WASHER
17 9427631000 PLUG OIL DRAIN
18 9015120000 BALL BRG, DRIVE SHAFT
19 9015087000 NEEDLE BEARING
20 3748001000 CABLE CLIP
21 9015162000 BUTTON HEAD SCREW
22 9015001000 OIL SEAL
23 9015103000 OIL SEAL
24 3741006000 WASHER
25 9015147000 OIL SEAL CRANKSHAFT
26 3920025000 SPROCKET COVER
27 9014478560 BUTTON HEAD SCREW
28 3741020000 DOWEL
29 3741053265 CRANKCASE ASSY
MAIN BEARING SHELLS NOT AVAILABLE SEPARATELY, COMES WITH PART NUMBER 29 - 3741053265 CRANKCASE ASSY
