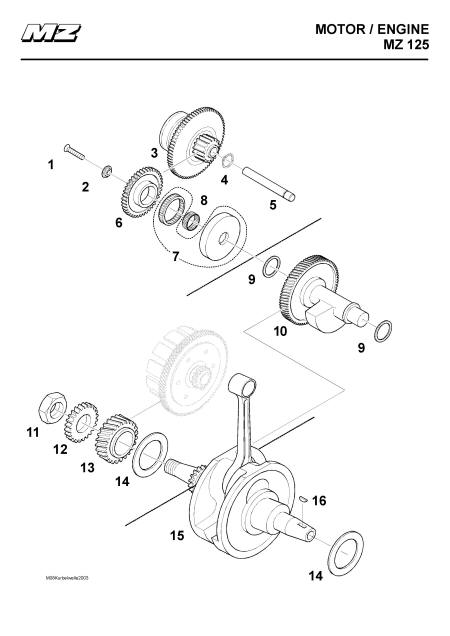

125 Crankshaft

# Part Number Description
1 NLA
2 3743027000 COLLAR WASHER
3 3743050005 VIBRATION DAMPER
4 9015122000 CIRCLIP
5 3741012000 SHAFT, STARTER MOTOR
6 3743026005 FREE WHEEL GEAR
7 3743065005 FREE WHEEL CLUTCH ASSY
8 9015084000 NEEDLE BEARING
9 3743040085 SHIM RING
10 3743014005 BALANCE SHAFT
11 9015154000 NUT
12 3743011000 DRIVING GEAR FOR PUMPS
13 3743010000 DRIVING GEAR FOR BALANCER
14 3743020085 SHIM RING
15 3743004005 CRANKSHAFT ASSY
16 9015012000 WOODRUFF KEY
