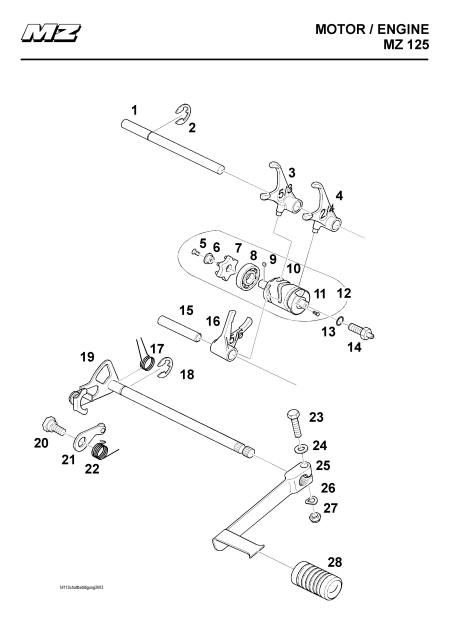

125 Gear Shaft
| # |
Part Number |
Description |
| 1 |
3747032000 |
BAR, SHIFT FORK GUIDE 2 |
| 2 |
9442454000 |
RETAINING WASHER |
| 3 |
3747034000 |
FORK, SHIFT 1 & 3 |
| 4 |
3747033000 |
FORK SHIFT 2 & 4 |
| 5 |
|
COUNTR SUNK DCREW |
ALL PART OF # 12 |
| 6 |
|
WASHER |
| 7 |
|
STOPPER |
| 8 |
|
BALL BEARING |
| 9 |
|
PARALLEL KEY |
| 11 |
|
GROOVED PIN |
| 12 |
3747000005 |
SHIFT CAM ASSY |
| 13 |
9015186000 |
SEALING RING |
| 14 |
9015177000 |
NEUTRAL SWITCH |
| 15 |
9015077000 |
BAR, SHIFT FORK GUIDE |
| 16 |
3747031000 |
FORK. SHIFT 5 & 6 |
| 17 |
3747022000 |
RETURN SPRING |
| 18 |
9015116000 |
RETAINING WASHER |
| 19 |
3747020000 |
SHIFT SHAFT |
| 20 |
3747015000 |
M6 BOLT |
| 21 |
3747010000 |
STOPPER |
| 22 |
3747014000 |
SPRING |
| 23 |
9014793000 |
HEXAGON SCREW |
| 24 |
9436013000 |
WASHER |
| 25 |
3925035605 |
GEAR SHIFT PEDAL |
| 26 |
9438365000 |
SPRING WASHER |
| 27 |
9013309000 |
HEXAGON NUT |
| 28 |
0547050000 |
RUBBER |
|
