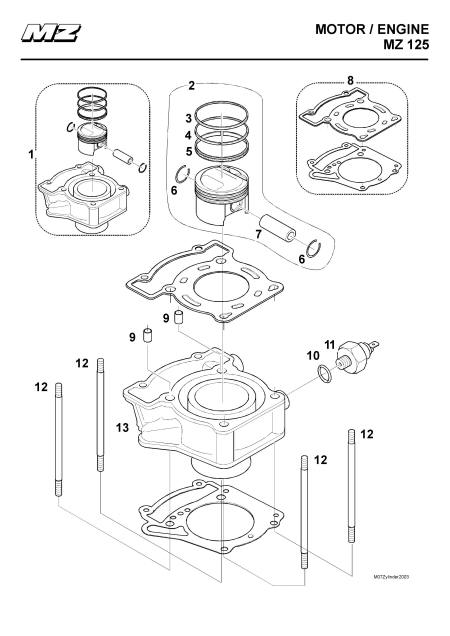

125 Cylinder

# Part Number Description
1 3742005265 CYLINDER AND PISTON ASSY
2 374200600X PISTON KIT BARREL A
2 374200600Y PISTON KIT BARREL B
2 374200600Z PISTON KIT BARREL C
3 9015098000 PISTON RING
4 9015099000 PISTON RING
5 9015100000 OIL SCRAPER RING
6 9015086000 CIRCLIP
7 9015199000 GUDGEON PIN
8 3742025005 HEAD AND BASE GASKET SET
9 3741018000 DOWEL
10 9023021000 SEALING WASHER
11 9015232000 OIL PRESSURE SWITCH
12 3741019000 STUD
13 374205326A CYLINDER A
13 374205326B CYLINDER B
13 374205326C CYLINDER C
