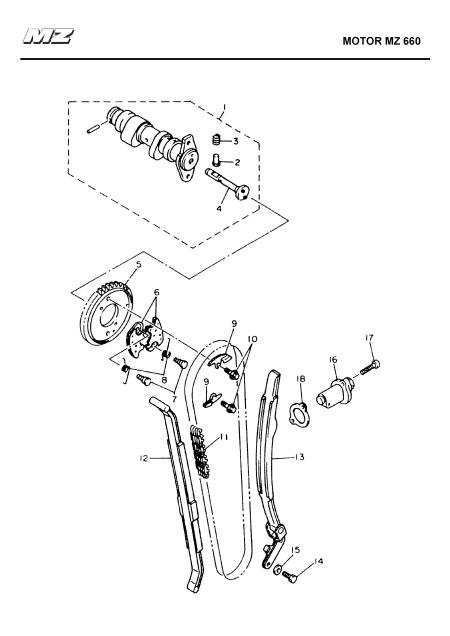

660 Camshaft

# PART NUMBER DESCRIPTION Price Cart
1. 9020110000 CAMSHAFT ASSY 1
2. 9020115000 PIN, DECOMPRESSION LEVER *
3. 9020329000 COMPRESSION SPRING *
4. 9020117000 LEVER, DECOMPRESSION SPRING *
5. 9020111000 SPROCKET, CAM CHAIN
6. 9020116000 CAM, DECOMPRESSION
7. 9020114000 SHAFT, TENSIONER
8. 9020112000 SPRING
9. 9020113000 PLATE, GUIDE STOPPER 1
10. 9020238000 BOLT, WASHER BASED
11. 9020405000 CHAIN
12. 9020186000 GUIDE, STOPPER 1
13. 9020187000 GUIDE, STOPPER 2
14. 9020415000 BOLT
15. 9020352000 WASHER, PLATE
16. 9020067000 TENSIONER ASSY, CAM CHAIN
17. 9020341000 BOLT
18. 9020198000 GASKET, TENSIONER CASE



*

INTEGRATED IN PART 1
