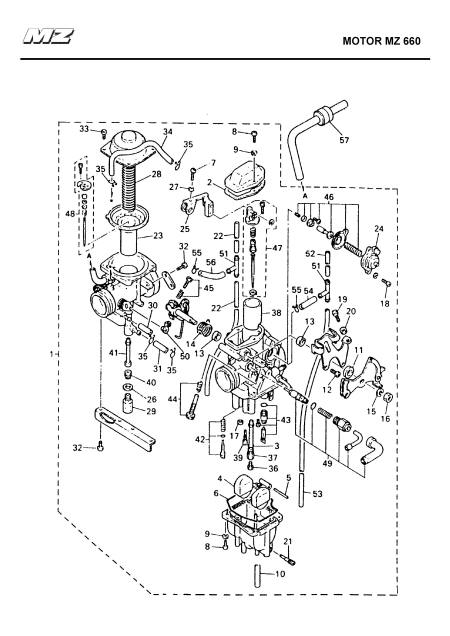

660 Carburettor

#	Part Number	Description	Price	Cart
1.	9020144000	CARBURETTOR ASSY 1
2.	9020214000	GASKET *
3.	9020195000	GASKET *
4.	9020028000	FLOAT *
5.	9020236000	PIN, FLOAT *
6.	9020218000	GASKET, FLOAT CHAMBER *
7.	9020425000	SCREW, PAN HEAD *
8.	9020421000	SCREW, PAN HEAD *
9.	9020356000	WASHER, SPRING *
10.	9013100000	PIPE *
11.	9020005000	COLLAR *
12.	9020040000	SCREW, LEVER FITTING *
13.	9020221000	SEAL *
14.	9020021000	SPRING, THROTTLE VALVE *
15.	9020216000	WASHER, SPRING *
16.	9020217000	NUT *
17.	9020220000	GASKET *
18.	9020424000	SCREW, PAN HEAD *
19.	9020426000	SCREW, PAN HEAD *
20.	9020182000	NUT *
21.	9020025000	FUEL VENT SCREW SET *
22.	9020139000	PIPE *
23.	9020159000	DIAPHRAGM ASSY *
24.	9020027000	COVER 1 *
25.	9020003000	CONNECTER COMPLETE *
26.	9020142000	WASHER *
27.	9020356000	WASHER, SPRING *
28.	9020143000	SPRING *
29.	9020138000	BOLT, HOLDING *
30.	9020215000	PIPE *
31.	9020181000	PIPE *
32.	9020418000	SCREW, PAN HEAD *
33.	9020424000	SCREW, PAN HEAD *
34.	9020196000	PIPE *
35.	9020213000	CLIP *
36.	9020045000	JET, MAIN (130) *
	9020044000	JET, MAIN (120) *
	9020046000	JET, MAIN (140) *
37.	9020033000	NOZZLE, MAIN *
38.	9020004000	VALVE, THROTTLE 1 *
39.	9020206000	JET PILOT (48) *
39.	9020209000	JET, PILOT (54) *
40.	9020146000	JET, MAIN (165) *
41.	9020147000	NOZZLE, MAIN 2 *
42.	9020233000	PILOT SCREW SET *
43.	9020026000	NEEDLE VALVE SET *
44.	9020060000	STOP SCREW SET *
45.	9020036000	THROTTLE SCREW SET *
46.	9020006000	DIAPHRAGM SET 1 *
47.	9020158000	NEEDLE SET *
48.	9020157000	NEEDLE SET *
49.	9020002000	STARTER SET *
50.	9020237000	JOINT, CHOKE LEVER *
51.	9020301000	WAY 3 *
52.	9020135000	PIPE *
53.	9020136000	PIPE *
54.	9020141000	PIPE *
55.	9020137000	CLIP *
56.	9020145000	PIPE STARTER *
57.	9013100000	PIPE *
	*	INTEGRATED IN PART 1
