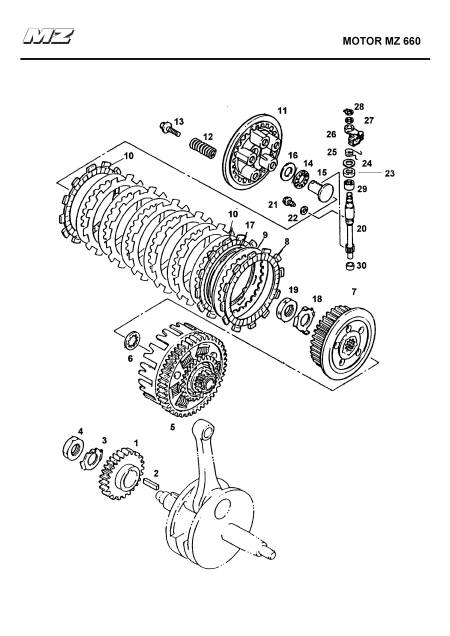

660 Clutch
| # |
Part Number |
Description |
Price |
Cart |
| 1. |
9020051000 |
GEAR,
PRIMARY DRIVE (34T) |
|
|
| 2. |
9020286000 |
KEY,
STRAIGHT |
|
|
| 3. |
9020280000 |
WASHER, LOCK |
|
|
| 4. |
9020259000 |
NUT |
|
|
| 5. |
9020052000 |
PRIMARY DRIVEN
GEAR COMPLETE (71T) |
|
|
| 6. |
9020029000 |
PLATE,
THRUST 1 |
|
|
| 7. |
9020030000 |
BOSS, CLUTCH |
|
|
| 8/10 |
CK2297 |
SET PLATE, FRICTION |
|
|
| 9. |
9020194000 |
PLATE, CLUTCH 2 |
|
|
| 11. |
9020166000 |
PLATE,
PRESSURE 1 |
|
|
| 12. |
9020331000 |
SPRING,
COMPRESSION |
|
|
| 13. |
9020256000 |
SCREW,
WITH WASHER |
|
|
| 14. |
9020395000 |
BEARING, THRUST |
|
|
| 15. |
9020065000 |
ROD,
PUSH 1 |
|
|
| 16. |
9020272000 |
WASHER
PLATE |
|
|
| 17. |
9020226000 |
SPRING,
CLUTCH BOSS |
|
|
| 18. |
9020281000 |
WASHER,
LOCK |
|
|
| 19. |
9020260000 |
NUT |
|
|
| 20. |
9020061000 |
AXLE,
PUSH LEVER |
|
|
| 21. |
9020246000 |
BOLT
WASHER, LOCK |
|
|
| 22. |
9020303000 |
GASKET |
|
|
| 23. |
9020361000 |
OIL
SEAL |
|
|
| 24. |
9020273000 |
WASHER,
PLATE |
|
|
| 25. |
9020332000 |
SPRING,
TORSION |
|
|
| 26. |
9020165000 |
PUSH
LEVER ASSY |
|
|
| 27. |
9020268000 |
WASHER,
PLATE |
|
|
| 28. |
9020431000 |
CIRCLIP |
|
|
| 29. |
9020393000 |
BEARING, CYLINDRICAL |
|
|
| 30. |
9020392000 |
BEARING, CYLINDRICAL |
|
|
|
