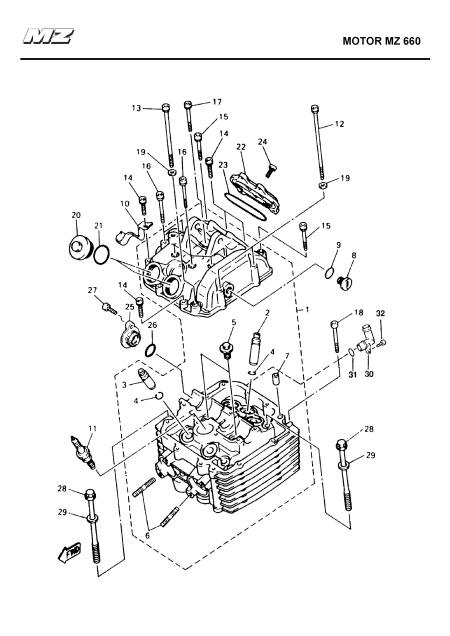

660 Cylinder
Head
| # |
Part Number |
Description |
Price |
Cart |
| 1. |
9020078000 |
CYLINDER HEAD ASSY |
|
|
| 2. |
9020079000 |
GUIDE,
INTAKE VALVE * |
|
|
| 3. |
9020080000 |
GUIDE, EXHAUST VALVE * |
|
|
| 4. |
9020396000 |
CIRCLIP
* |
|
|
| 5. |
9020291000 |
PLUG,
STRAIGHT SCREW |
|
|
| 6. |
9020250000 |
BOLT,
STUD * |
|
|
| 7. |
9020436000 |
PIN, DOWEL * |
|
|
| 8. |
9020289000 |
PLUG, STRAIGHT SCREW |
|
|
| 9. |
9020367000 |
O-RING |
|
|
| 10. |
9020085000 |
BRACKET |
|
|
| 11. |
9020406000 |
SPARK
PLUG (NGK DPR8EA-9) |
|
|
| 12. |
9020350000 |
BOLT |
|
|
| 13. |
9020349000 |
BOLT |
|
|
| 14. |
9020341000 |
BOLT |
|
|
| 15. |
9020343000 |
BOLT |
|
|
| 16. |
9020346000 |
BOLT |
|
|
| 17. |
9020244000 |
BOLT |
|
|
| 18. |
9020345000 |
BOLT |
|
|
| 19. |
9020469000 |
WASHER |
|
|
| 20. |
9020007000 |
COVER,
CYLINDER HEAD SIDE 2 |
|
|
| 21. |
9020371000 |
O-RING |
|
|
| 22. |
9020082000 |
COVER,
CYLINDER HEAD SIDE 3 |
|
|
| 23. |
9020377000 |
O-RING |
|
|
| 24. |
9020339000 |
BOLT |
|
|
| 25. |
9020466000 |
CAP,
TENSIONER CASE |
|
|
| 26. |
9020467000 |
O-RING |
|
|
| 27. |
9020247000 |
BOLT,
HEXAGON SOCKET HEAD |
|
|
| 28. |
9020240000 |
BOLT,
WASHER BASED |
|
|
| 29. |
9020267000 |
WASHER,
PLATE |
|
|
| 30. |
9020123000 |
TUBE |
|
|
| 31. |
9020369000 |
O-RING |
|
|
| 32. |
9020336000 |
SCREW |
|
|
|
*
INTEGRATED IN PART NO. 9020078000 |
|
