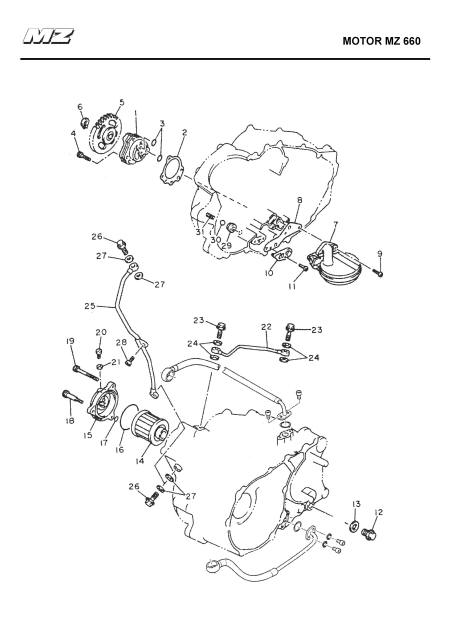

660 Oil System

# Part Number Description Price Cart
1. 9020048000 OIL PUMP ASSY
2. 9020074000 GASKET, PUMP COVER
3. 9020366000 O-RING
4. 9020342000 BOLT
5. 9020049000 GEAR, PUMP DRIVEN
6. 9020432000 CIRCLIP
7. 9020210000 STRAINER COMPLETE
8. 9020199000 SEAL, OIL STRAINER
9. 9020420000 SCREW, PAN HEAD
10. 9020223000 COVER, CAP 2
11. 9020420000 SCREW, PAN HEAD
12. 9020290000 PLUG (OIL DRAIN SCREW)
13. 9020039000 GASKET
14. HF145 ELEMENT ASSY, OIL CLEANER
15. 9020038000 COVER, OIL ELEMENT
16. 9020376000 O-RING
17. 9020363000 O-RING
18. 9020245000 BOLT
19. 9020348000 BOLT
20. 9020252000 SCREW
21. 9020302000 GASKET
22. 9020047000 PIPE, DELIVERY 1
23. 9020299000 BOLT, UNION
24. 9020305000 GASKET
25. 9020130000 PIPE, DELIVERY 1
26. 9020300000 BOLT, UNION
27. 9020306000 GASKET
28. 9020249000 BOLT, HEXAGON SOCKET HEAD
29. 9020235000 SEAT, CHECK BALL
