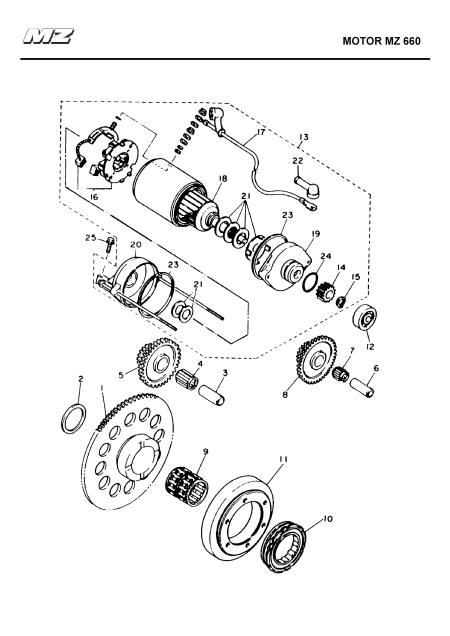

660 Starter Motor

# Part Number Description Price Cart
1. 9020164000 GEAR 3
2. 9020276000 WASHER, PLATE
3. 9020014000 SHAFT 2
4. 9020389000 BEARING, CYLINDRICAL
5. 9020012000 GEAR, IDLER 2
6. 9020013000 SHAFT 1
7. 9020388000 BEARING, CYLINDRICAL
8. 9020011000 GEAR, IDLER 1
9. 9020390000 BEARING, CYLINDRICAL
10. 9020072000 STARTER ONE WAY ASSY
11. 9020073000 RACE, ONE WAY BEARING
12. 9020382000 BEARING (6200)
13. 9020037000 STARTING MOTOR ASSY
14. 9020010000 GEAR, STARTING MOTOR *
15. 9020397000 CIRCLIP *
16. 9020055000 BRUSH SET *
17. 3434023000 STARTER CABLE
18. 9020059000 ARMATURE ASSY *
19. 9020058000 FRONT BRACKET ASSY *
20. 9020057000 REAR BRACKET ASSY *
21. 9020056000 WASHER KIT *
22. 9020204000 CAP *
23. 9020024000 GASKET *
24. 9020043000 O-RING *
25. 9020409000 BOLT, FLANGE


*

INTEGRATED IN PART NO.9020037000
