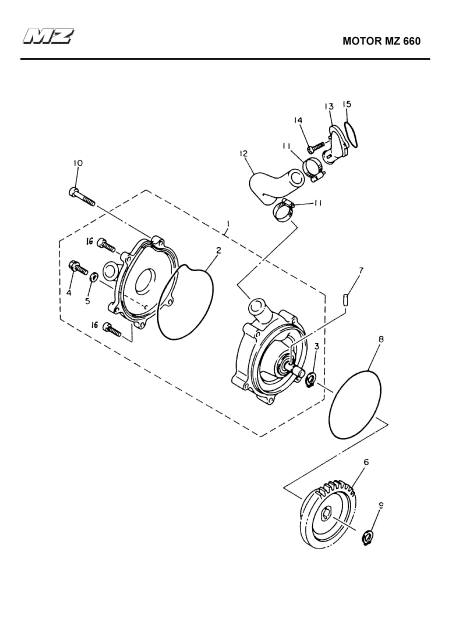

660 Water Pump

# Part Number Description Price Cart
1. 9020119000 WATER PUMP ASSY
2. 9020019000 O-RING *
3. 9020433000 CIRCLIP *
4. 9020437000 BOLT, FLANGE *
5. 9020303000 GASKET *
6. 9020120000 GEAR IMPELLER SHAFT
7. 9020401000 PIN, DOWEL
8. 9020378000 O-RING
9. 9020433000 CIRCLIP
10. 9020344000 BOLT
11. 9020311000 HOSE CLAMP ASSY
12. 9020126000 HOSE 2
13. 9020122000 JOINT 1
14. 9020340000 BOLT
15. 9020372000 O-RING
16. 9013262000 SCREW


*

INTEGRATED IN PART NO.9020119000
