Baghira /

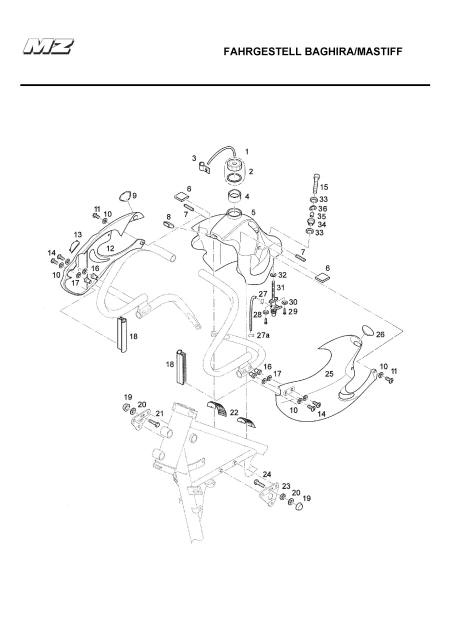

Mastiff Fuel Tank
| # |
Part Number |
Description |
Price |
Cart |
| 1. |
9013601000 |
AIR
VENT HOSE, LENGTH 250mm |
|
|
| 2. |
9014236000 |
FILTER
CAP C/W GASKET |
|
|
| |
3627020000 |
GASKET |
|
|
| 3. |
9014411000 |
CLIP FOR AIR
VENT HOSE C/W HOSE |
|
|
| 4. |
3627030000 |
BAFFLE
(USA) |
|
|
| 5. |
3627042831 |
FUEL
TANK, BLACK |
|
|
| |
3627043836 |
FUEL TANK, BLACK (USA) |
|
|
| 6. |
3433035000 |
NEOPREN TAPE |
|
|
| 7. |
9014702000 |
SET SCREW |
|
|
| 8. |
3627009000 |
BAG |
|
|
| 9. |
3632015 |
COVER
RIGHT HAND SIDE |
|
|
| 10. |
9014548000 |
WASHER |
|
|
| 11. |
9013284000 |
COUNTERSUNK HEX. SCREW |
|
|
| 12. |
3632019*** |
SPOILER RIGHT,
PAINTED OR COLOURED WITH OR WITHOUT STICKERS |
|
|
| 13. |
3632017*** |
CAP
PAINTED OR COLOURED |
|
|
| 14. |
9014547000 |
FLANGE
BUTTON HEAD SCREW |
|
|
| 15. |
9412443000 |
ALLEN
SCREW |
|
|
| 16. |
9014384000 |
RUBBER
COLLAR NUT |
|
|
| 17. |
3430011000 |
RUBBER
WASHER |
|
|
| 18. |
3632010000 |
SPACER
FOR SPOILER |
|
|
| 19. |
9014351000 |
SILENT
BLOCK |
|
|
| 20. |
9014408000 |
DISTANCE SLEEVE |
|
|
| 21. |
9403858000 |
HEXAGON
SCREW |
|
|
| 22. |
3627007005 |
TANK
SUPPORT |
|
|
| 23. |
9014352000 |
WASHER
|
|
|
| 24. |
9404006000 |
HEXAGON
SCREW |
|
|
| 25. |
3633028*** |
SPOILER LEFT,
PAINTED OR COLOURED WITH OR WITHOUT STICKERS |
|
|
| 26. |
3633025 |
COVER LEFT
HAND, PAINTED OR COLOURED |
|
|
| 27. |
3021880000 |
CLAMP
DIAMETER 10 |
|
|
|
27a. |
2941060000 |
CLAMP |
|
|
| 28. |
9013601000 |
FUEL
HOSE, LENGTH 50mm |
|
|
| 29. |
9013238000 |
HEXAGON
SCREW |
|
|
| 30. |
9438304000 |
SPRING
WASHER |
|
|
| 31. |
3627035000 |
PETROL
TAP |
|
|
| 32. |
9013065000 |
O-RING
FOR PETROL TAP |
|
|
| 33. |
0018131000 |
DISK |
|
|
| 34. |
3627016000 |
BUSH |
|
|
| 35. |
3627017000 |
DISTANCE SLEEVE |
|
|
| 36. |
9438386000 |
SPRING
WASHER |
|
|
|
