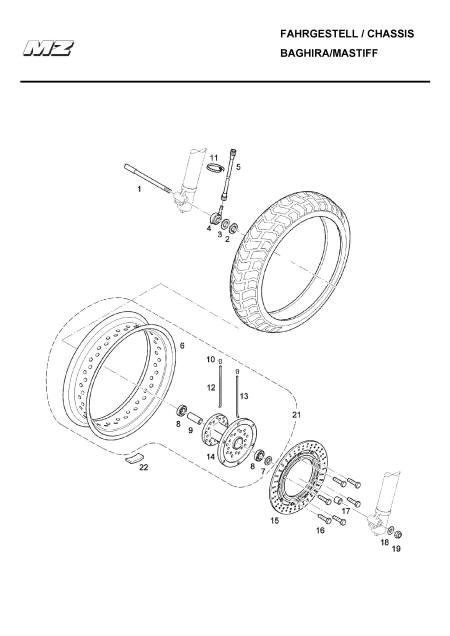

Baghira / Mastiff 17" Front Wheel

# Part Number Description Price Cart
1. 3624040000 AXLE
2. 3624026005 DRIVER RING
  9014433000 TAPPING SCREW
3. 9014360000 GASKET
4. 9014597000 SPEEDOMETER DRIVE GEAR
5. 3634031000 SPEEDO CABLE "BAGHIRA SM"
5. 3634032000 SPEEDO CABLE "BAGHIRA/MASTIFF"
6. 3624010000 RIM 3.50x17
7. 9014256000 OIL SEAL
8. 9014272000 BALL BEARING "6003"
9. 3624042000 SPACER
10. 9016393000 NIPPLE
11. 9635317000 WIRE CLAMPING TAPE
12. 3624063000 SPOKE
13. 3624062000 SPOKE
14. 3624008005 HUB DRUM FOR FRONT WHEEL
15.  9014268000 BRAKE DISC D=298
16. 9014269000 ALLEN SCREW
17. 3624041000 DISTANCE SLEEVE, LEFT 26.5mm
18. 0018156000 WASHER
19. 9014546000 HEXAGON NUT
    TYRE 120/60-ZR17
  9014214000 TYRE FLAP
21. 3624015005 FRONT WHEEL 3.50x17
22. 9467911000 BALANCE WEIGHT
