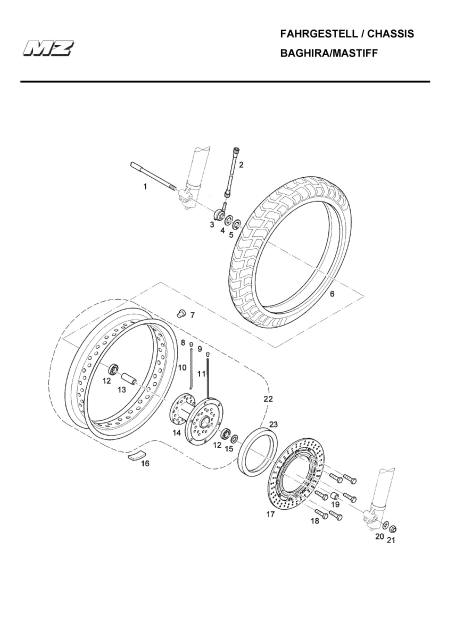

Baghira 21" Front Wheel

# Part Number Description Price Cart
1. 3624040000 AXLE
2. 3634031000 SPEEDO CABLE "BAGHIRA"
2. 3634036000 SPEEDO CABLE "BAGHIRA HR"
3. 9014265000 SPEEDOMETER DRIVE GEAR
4. 9014360000 GASKET
5. 3624026005 DRIVER RING
  9014433000 TAPPING SCREW
6. 9013040000 TYRE 90/90-21
  9014100000 TUBE
  9014101000 TYRE FLAP
7. 9014284000 TYRE HOLDER
8. 9014941000 RIM 1.85x21
9. 9371295000 NIPPLE
10. 3624021000 SPOKE
11. 3624022000 SPOKE
12. 9014272000 BALL BEARING "6003"
13. 3624042000 SPACER
14. 3624008005 HUB DRUM FOR FRONT WHEEL
15. 9014256000 OIL SEAL
16. 9014261000 BALANCE WEIGHT
17. 9014267000 BRAKE DISK D=282
18. 9014269000 ALLEN SCREW
19. 3624041000 DISTANCE SLEEVE, LEFT 26.5mm
20. 0018156000 WASHER
21. 9014546000 HEXAGON NUT
22. 3624016005 FRONT WHEEL RIM 1.85x21 (RIM POLISHED)
22. 3624005005 FRONT WHEEL RIM 1.85x21 (RIM ANODIZED)
23. 9014262000 DAMPER RING
