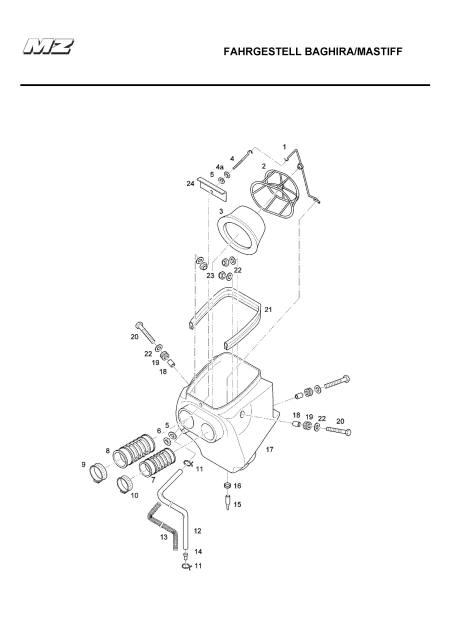

Baghira / Mastiff Air Box

# Part Number Description Price Cart
1. 3633016000 HOLDER
2. 3633015000 SUPPORT FOR FOAM FILTER
3. 9014208000 FOAM FILTER
4. 9014406000 EYE SCREW
4a. 9430282000 HEXAGON NUT
5. 9435824000 DISK
6. 9013455000 HEXAGON NUT
7. 3433006000 INTAKE PIPE DIAMETER 40mm
8. 3433005000 INTAKE PIPE DIAMETER 48mm
9. 9013434000 HOSE BAND CLIP
10. 9013433000 HOSE BAND CLIP
11. 9013472000 CLAMP
12. 9020474000 VENTILATION TUBE
13. 3633013000 SUPPORTING SPRING
14. 3433046005 SLEEVE
15. 3433017000 WASTE TUBE
16. 9013356000 CLIP
17. 3633010000 AIR BOX
18. 3434069000 SLEEVE
19.  9013242000 CABLE FUNNEL
20.  9404096000 HEXAGON SCREW
21.  3633020000 GASKET
22.  9436062000 DISK
23.  9430098000 HEXAGON NUT
24.  3633021000 STABILIZER
