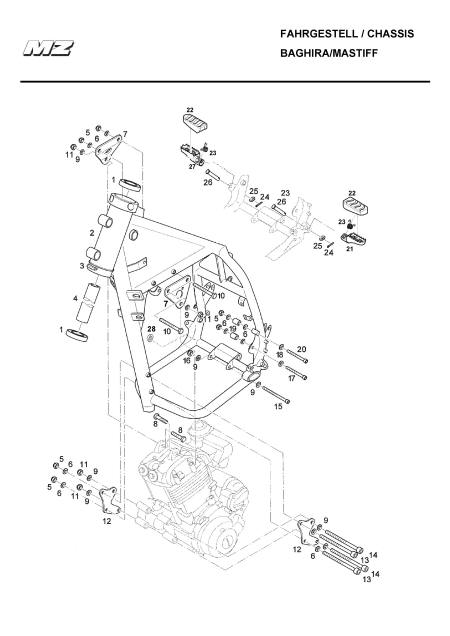

Baghira /
Mastiff Frame
| # |
Part Number |
Description |
Price |
Cart |
| 1. |
9013000000 |
BALL
BEARING (6205) |
|
|
| 2. |
3621201685 |
FRONT
FRAME, WHITE |
|
|
| 2. |
3621201695 |
FRONT FRAME, BLACK |
|
|
| |
3621202685 |
FRONT FRAME
BLACK MASTIFF, WHITE |
|
|
| |
3621202695 |
FRONT FRAME
BLACK MASTIFF, BLACK |
|
|
| 3. |
3621011000 |
STEERING STOP |
|
|
| 4. |
3621008000 |
DISTANCE PIPE |
|
|
| 5. |
9430099000 |
HEXAGON NUT |
|
|
| 5a. |
9438386000 |
SPRING WASHER |
|
|
| 6. |
9444585000 |
DISK |
|
|
| 7. |
3621031000 |
UPPER
ENGINE HOLDER |
|
|
| 8. |
3621081005 |
HEXAGON
SCREW |
|
|
| 9. |
9436183000 |
DISK |
|
|
| 10. |
9014419000 |
HEXAGON
SCREW |
|
|
| 11. |
9430373000 |
HEXAGON
NUT |
|
|
| 12. |
3621074000 |
BOTTOM
ENGINE HOLDER |
|
|
| 13. |
9014422000 |
ALLEN
SCREW |
|
|
| 14. |
9014289000 |
ALLEN
SCREW |
|
|
| 15. |
9014420000 |
ALLEN
SCREW |
|
|
| 16. |
9430736000 |
HEXAGON
NUT |
|
|
| 17. |
9014424000 |
SCREW |
|
|
| 18. |
9438386000 |
SPRING
WASHER |
|
|
| 19. |
9014225000 |
SUPPORTING ROLLER FOR CHAIN |
|
|
| 20. |
9014417000 |
SCREW |
|
|
| 21. |
3925042000 |
FOOTREST, LEFT |
|
|
| 22. |
9014398000 |
FOOTREST
RUBBER WITH HOLDER |
|
|
| 23. |
3925034000 |
SPRING |
|
|
| 24. |
9443158000 |
COTTER
PIN |
|
|
| 25. |
9013317000 |
DISK |
|
|
|
