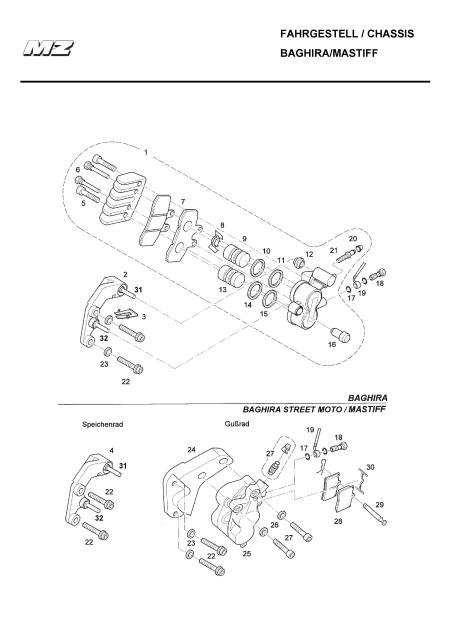

Baghira /
Mastiff Front Brake
| # |
Part Number |
Description |
Price |
Cart |
| 1. |
9014252000 |
BRAKE
CALIPER C/W BRAKE PAD |
|
|
| |
9022010000 |
GASKET SET
FRONT BRAKE CALIPER |
|
|
| 2. |
3624030000 |
ADAPTER FOR BRAKE
CALIPER |
|
|
| 3. |
9022007000 |
SPRING |
|
|
| 4. |
3624032000 |
ADAPTER
FOR BRAKE CALIPER |
|
|
| 5. |
|
ALLEN
SCREW |
|
|
| 6. |
9022002000 |
GUIDING BOLT |
|
|
| 7. |
9022001000 |
BRAKE PAD SET |
|
|
| 8. |
9022003000 |
RETURN SPRING
FOR BRAKE PADS |
|
|
| 9. |
9022004000 |
PISTON
32mm DIAMETER |
|
|
| 10. |
|
GASKET
RING 32mm DIAMETER * |
|
|
| 11. |
|
GASKET
32mm DIAMETER * |
|
|
| 12. |
|
RUBBER
PROTECTOR, SHORT * |
|
|
| 13. |
9022005000 |
PISTON
30mm DIAMETER |
|
|
| 14. |
|
GASKET
RING 30mm DIAMETER * |
|
|
| 15. |
|
GASKET
30mm DIAMETER * |
|
|
| 16. |
|
RUBBER
PROTECTOR, LONG * |
|
|
| 17. |
9013199000 |
SEALING
WASHER, CHROME |
|
|
| 18. |
9374016000 |
BANJO
BOLT, CHROME |
|
|
| 19. |
|
BRAKE LINES,
SEE FRONT MASTER CYLINDER |
|
|
| 20. |
|
RUBBER
CAP * |
|
|
| 21. |
9022006000 |
VENTILATION SCREW |
|
|
| 22. |
9014905000 |
ALLEN
SCREW |
|
|
| 23. |
|
NO
SPARE PART |
|
|
| 24. |
3624050000 |
ADAPTER
FOR BRAKE CALIPER** |
|
|
| 25. |
9014002000 |
BRAKE
CALIPER ** |
|
|
| 26. |
9013442000 |
TOOTHED
WASHER** |
|
|
| 27. |
9013370000 |
SCREW** |
|
|
| 28. |
9021401000 |
BRAKE
PAD SET** |
|
|
| 29. |
9021403000 |
RETENTION, WIRE CLAMP** |
|
|
| 30. |
9021402000 |
HOLDER** |
|
|
| 31. |
9022011000 |
BOLT,
SMALL |
|
|
| 32. |
9022009000 |
BOLT,
BIG |
|
|
| |
9022008000 |
NUT
WITH WASHER |
|
|
|
|
* |
PARTS
WITH NO NUMBER ARE IN GASKET SET 9022010000 |
|
|
|
|
** |
FRONT
CALIPER CAST WHEEL "MASTIFF" |
|
|
|
