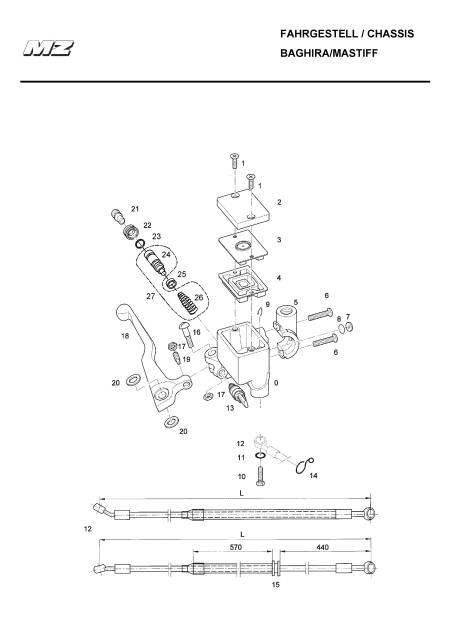

Baghira / Mastiff Front Master Cylinder

# Part Number Description Price Cart
  9467655000 MASTER CYLINDER WITHOUT BRAKE SWITCH
  8050751000 GASKET SET
1. 9021111000 COUNTERSUNK SCREW
2. 9021112000 LID
3. 9021113000 SUPPORTING PLATE
4.   DIAPHRAGM *
5. 8050759000 CLAMP
6. 9021117000 BUTTON HEAD SCREW
6a. 9023032000 BUTTON HEAD SCREW
7. 8050762000 INSPECTION GLASS
8.   O-RING *
9. 8050763000 CLASP
10. 9374016000 BANJO BOLT
11. 9013199000 GASKET DISK
12. 3623010000 BRAKE LINE L=1550mm
12. 3623011000 BRAKE LINE L=1360mm
12. 3623012000 BRAKE LINE L=1120mm **
12. 3623013000 BRAKE LINE L=1440mm
13. 9546517000 FRONT BRAKE SWITCH
14. 3024115000 BRAKE LINE HOLDER
15. 9014395000 CABLE FUNNEL
16. 8050760000 SLOTTED SCREW
17. 8050763000 FLAT NUT
18. 8050750000 BRAKE LEVER
19. 8050761000 ADJUSTING SCREW
20. 9023033000 WASHER
21. 8050752000 PRESSURE BOLT
22.   PACKING RING *
23. 8050756000 PRESSURE SPRING
24.   PISTON ***
25.   GASKET RING *
26.   GASKET *
27. 8050753000 PISTON C/W PRESSURE SPRING ***
28. 9022176000 COVER FOR FRONT BRAKE SWITCH

*       ENCLOSED IN PART NUMBER 8050751000 GASKET SET

**     MASTIFF WITH CAST WHEEL

***   ONLY AS PART OF 8050753000
