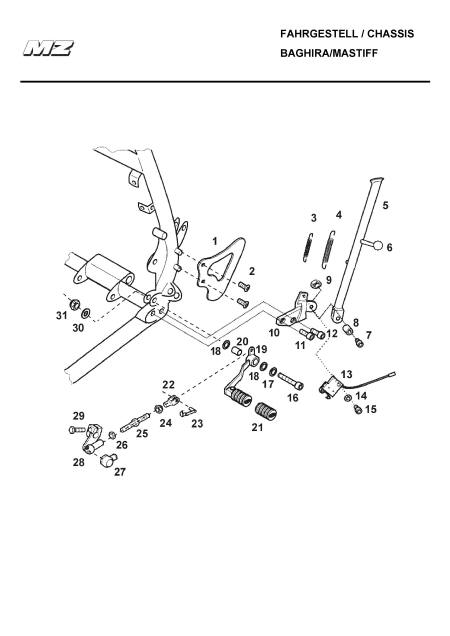

Baghira / Mastiff Gear Lever

#	Part Number	Description	Price	Cart
1.	3621151000	COVER FOR SIDE STAND SWITCH
2.	9014380000	FLANGE BUTTON HEAD SCREW
3.	3021196000	INNER TENSION SPRING
4.	3021208000	OUTER TENSION SPRING
5.	3621147000	SIDE STAND BAGHIRA LENGTH 383mm
	3621177595	SIDE STAND LENGTH 327mm
	3621141000	SIDE STAND LENGTH 278mm
6.	3621172000	RUBBER BALL
7.	9014446000	ALLEN SCREW
8.	3621146000	SLEEVE FOR SIDE STAND
9.	9430692000	NUT
10.	3621145000	HOLDER FOR SIDE STAND
11.	9013321000	SCREW
12.	9014592000	SCREW
13.	3621155000	SWITCH FOR SIDE STAND C/W CABLE
14.	9437867000	SPRING WASHER
15.	9403858000	HEXAGON SCREW
16.	9412440000	ALLEN SCREW
17.	9444585000	WASHER
18.	9014587000	GASKET RING
19.	9022206005	PEDAL GEAR SHIFT SET
	3625079615	PEDAL GEAR SHIFT
20.	3625068000	DISTANCE SLEEVE
21.	9014301000	RUBBER FOR PEDAL GEAR SHIFT
22.	9014429000	JOINT
23.	9090118000	BOLT
24.	9013210000	HEXAGON NUT
25.	3625010000	FORCING LEVER LENGTH 54mm
26.	9013211000	HEXAGON NUT, LEFT
27.	9013086000	DUST LID
28.	9013083000	SHIFTER
29.	9404096000	HEXAGON SCREW
30.	9438386000	SPRING WASHER
31.	9430099000	HEXAGON NUT
