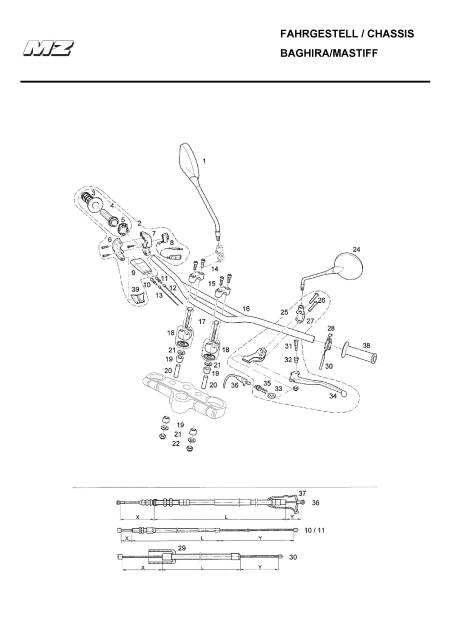

Baghira / Mastiff Handle Bars

# Part Number Description Price Cart
1. 9013351000 MIRROR, RIGHT
2. 9014320000 TWIST GRIP COMPLETE
3. 9023051000 RUBBER GRIP
4. 9023205000 TWIST GRIP TUBE COMPLETE
5. 8050725000 CABLE HOLDER
6. 9022173000 REAR COVER FOR SWITCH **
7. 9022174000 FRONT COVER FOR SWITCH **
8. 9022175000 SWITCH SET **
9. 9022172000 RUBBER CAP FOR PULL THROTTLE CABLE **
10. 8050724000 ADJUSTING SCREW C/W NUT M8 FOR THROTTLE CABLE
11. 9022171000 ADJUSTING SCREW C/W NUT M6 FOR THROTTLE CABLE
12. 3623016000 PULL THROTTLE CABLE L=835mm
13. 3623017000 PUSH THROTTLE CABLE L=835mm
14. 9013436000 ALLAN SCREW
15. 9014317000 UPPER HANDLEBAR CLAMP
16. 3623008705 HANDLEBAR, BLACK
16. 3623008745 HANDLEBAR, AL
17. 9013315000 HEXAGONAL BOLT
18. 9014308000 LOWER HANDLEBAR CLAMP C/W WASHER
19. 3623030000 RUBBER DAMPER
20. 3623031000 SLEEVE
21. 9014439000 WASHER
22. 9430373000 HEXAGON NUT
23. 3623007695 HANDLEBAR, BLACK
  3623007685 HANDLEBAR, WHITE
24. 9013060000 MIRROR, LEFT
25. 9467688000 CLUTCH LEVER DEVICE COMPLETE
26. 8050737000 SCREW
27. 8050707000 SUPPORTING SHELL
28. 9635245000 CHOKE LEVER
29. 1629017000 RUBBER COVER FOR STARTER CABLE
30. 3623015000 STARTING CABLE L=830mm
31. 8050738000 SLIT SCREW
32. 8050708000 BUSH
33. 8050722000 CABLE ROLLER
34. 8050705000 CLUTCH LEVER
35. 8050720000 ADJUSTING SCREW C/W NUT
36. 3623018000 CLUTCH CABLE L=1120mm
  3622019000 GUIDE FOR CLUTCH CABLE
37. 9636455000 RUBBER COVER
38. 9023050000 RUBBER GRIP
39. 8050733000 GUIDE FOR CABLES


**

 PARTS INCLUDED IN NO.2 TWIST GRIP COMPLETE
