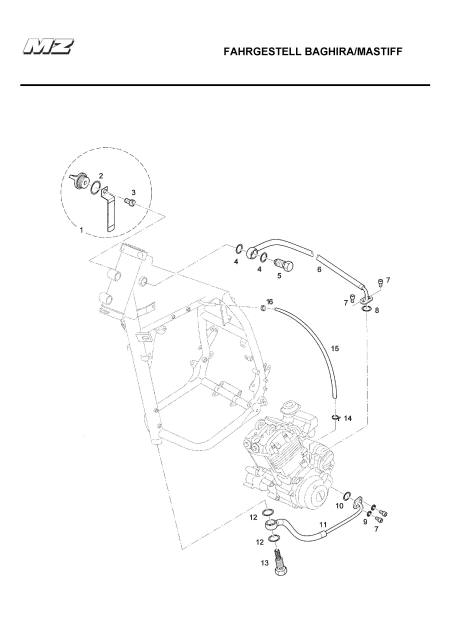

Baghira / Mastiff Oil System

# Part Number Description Price Cart
1. 3627010005 LOCK FOR OIL TANK
2. 9673000000 O-RING
3. 9013288000 TAPPING SCREW
4. 9014407000 GASKET RING
5. 9014094000 BANJO BOLT GASKET RING
6. 3620007000 UPPER OIL HOSE
7. 9412891000 ALLEN SCREW
8. 9013063000 O-RING
9. 9013412000 TOOTHED LOCK WASHER
10. 9013065000 O-RING
11. 3620008000 BOTTOM OIL PIPE
12. 9632328000 GASKET RING
13. 9013333000 OIL SCREEN BOLT
14. 9013472000 CLAMP
15. 9020458000 VENTILATION TUBE 365mm
16. 9013410000 HOSE BAND CLIP
