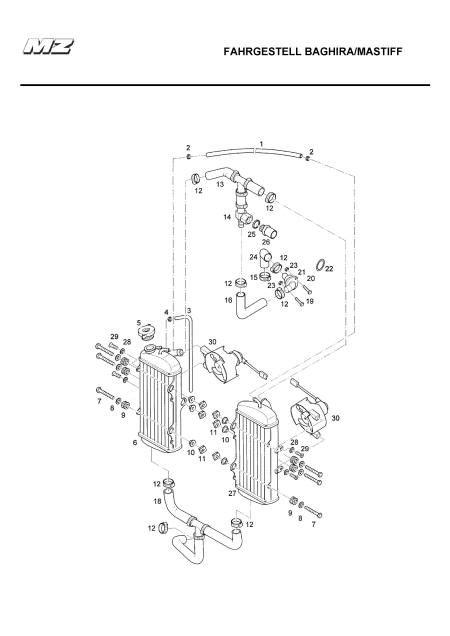

Part Number |
Description |
Price |
Cart |
| 1. |
3620004000 |
AIR
VENT HOSE FOR RADIATOR |
|
|
| 2. |
9014387000 |
HOSE
BAND CLIP |
|
|
| 3. |
3432028000 |
AIR VENT HOSE
FOR RADIATOR CAP |
|
|
| 4. |
3021880000 |
HOSE
BAND CLIP |
|
|
| 5. |
9013429000 |
RADIATOR CAP |
|
|
| 6. |
9014201000 |
RADIATOR RIGHT |
|
|
| 7. |
9404248000 |
HEXAGONAL BOLT |
|
|
| 8. |
9436062000 |
WASHER |
|
|
| 9. |
9013068000 |
RUBBER FUNNEL |
|
|
| 10. |
9013067000 |
BUSH
|
|
|
| 11. |
9013260000 |
PLATE
NUT |
|
|
| 12. |
9014385000 |
HOSE
BAND CLIP |
|
|
| 12. |
9013078000 |
HOSE
BAND CLIP |
|
|
| 13. |
3620003000 |
UPPER
WATER TUBE |
|
|
| 14. |
|
INTEGRATED,
PART OF UPPER WATER TUBE |
|
|
| 15. |
9014386000 |
HOSE
AND CLIP |
|
|
| 16. |
3620006000 |
TUBE BETWEEN
THERMOSTAT AND T- CONNECTION |
|
|
| 17. |
|
NO
SPARE PART |
|
|
| 18. |
3620010000 |
WATER
TUBE BOTTOM |
|
|
| 19. |
9411641000 |
ALLEN
SCREW |
|
|
| 20. |
9013074000 |
THERMOSTAT |
|
|
| 21. |
3420012000 |
THERMOSTAT, BOTTOM PART |
|
|
| 22. |
9013336000 |
O-RING |
|
|
| 23. |
9430242000 |
HEXAGONAL NUT |
|
|
| 24. |
3620005000 |
WATER TUBE
BETWEEN THERMOSTAT AND CYLINDER |
|
|
| 25. |
|
GASKET RING
(PART OF THERMAL SWITCH) |
|
|
| 26. |
9014238000 |
THERMAL
SWITCH, FOR WARNING LIGHT AND VENTILATOR |
|
|
| 26. |
9015207000 |
THERMAL
SWITCH, FOR WARNING LIGHT AND VENTILATOR (FOR TRIPLE
CONNECTOR) |
|
|
| |
9016297000 |
RUBBER
CAP ** |
|
|
| |
9016298000 |
CONNECTOR HOUSING ** |
|
|
| |
9016299000 |
CONTACTS ** |
|
|
| 27. |
9022160000 |
RADIATOR LEFT |
|
|
| 28. |
9013073000 |
SPRING
WASHER |
|
|
| 29. |
9013143000 |
SCREW |
|
|
| 30. |
9013069000 |
FAN, only 1 required ignore
drawing.. |
|
|
| |
9013422000 |
CLIPS
NUT |
|
|
| |
9521123000 |
CATS EYE,
SIDEWAYS, YELLOW (USA) |
|
|
| |
9013242000 |
RUBBER
FUNNEL |
|
|
| |
3434034000 |
DISTANCE SLEEVE |
|
|
|
|
** |
THESE
PARTS ARE FOR COMPLETING THE CABLE HARNESS IN CONNECTION
WITH THE NEW THERMAL SWITCH 9015207000 |
|
|
