Baghira /

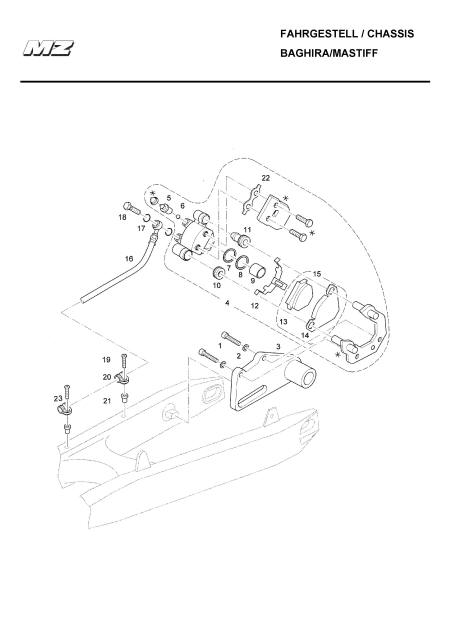

Mastiff Rear Brake
| # |
Part Number |
Description |
Price |
Cart |
| 1. |
9412440000 |
ALLAN
SCREW |
|
|
| 2. |
9014396000 |
SAFETY
DISK |
|
|
| 3. |
3625025000 |
ADAPTOR FOR BRAKE
CALIPER |
|
|
| 4. |
9014243000 |
REAR BRAKE
CALIPER 35mm PISTON DIAMETER |
|
|
| |
9022040000 |
BRAKE PAD SET,
REAR BRAKE CALIPER |
|
|
| 5. |
9021040000 |
VENTILATION SCREW |
|
|
| 6. |
9021042000 |
BALL |
|
|
| 7.
|
|
INNER SEALING RING ** |
|
|
| 8. |
|
OUTER SEALING RING ** |
|
|
| 9. |
9022034000 |
BRAKE
PISTON |
|
|
| 10. |
|
RUBBER
PROTECTOR, SHORT ** |
|
|
| 11. |
|
RUBBER
PROTECTOR, LONG ** |
|
|
| 12. |
9022033000 |
RETURN SPRING
FOR BRAKE PADS |
|
|
| 15. |
FA173 |
REAR
BRAKE PAD SET * |
|
|
| 16. |
3625033000 |
BRAKE
HOSE |
|
|
| 17. |
9013199000 |
GASKET
DISK, CHROME |
|
|
| 18. |
9374016000 |
BANJO
BOLT, CHROME |
|
|
| 18. |
9374015000 |
BANJO
BOLT, BLACK |
|
|
| 19. |
9014769000 |
BUTTON
HEAD SCREW |
|
|
| 20. |
9014316000 |
CLAMP |
|
|
| 21. |
9013267000 |
BLIND
RUBBER NUT |
|
|
| 22. |
9022036000 |
LOCK
PLATE |
|
|
| 23. |
9014671000 |
CLAMP |
|
|
| |
|
|
|
|
|
|
* |
PART OF
REAR BRAKE CALIPER |
|
|
|
|
** |
PART OF
GASKET SET 9022040000 |
|
|
|
