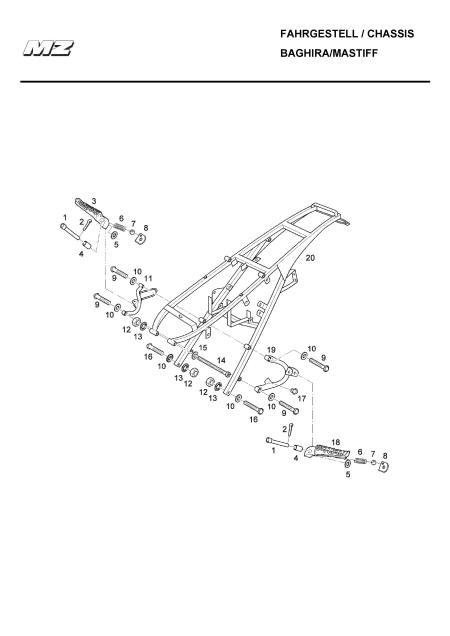

Baghira /
Mastiff Rear Frame
| # |
Part number |
Description |
Price |
Cart |
| 1. |
9013126000 |
CLEVIS
PIN |
|
|
| 2. |
9013464000 |
SPLIT
PIN |
|
|
| 3. |
9013081000 |
REAR FOOTREST, RIGHT
HAND |
|
|
| 4. |
9013116000 |
SLEEVE |
|
|
| 5. |
9436013000 |
DISK |
|
|
| 6. |
9013124000 |
PRESSURE SPRING |
|
|
| 7. |
9400902000 |
BALL |
|
|
| 8. |
9013080000 |
SPECIAL DISK |
|
|
| 9. |
9014545000 |
FLANGE BUTTON HEAD
SCREW |
|
|
| 10. |
9438386000 |
SPRING
WASHER |
|
|
| 11. |
3621130690 |
FOOTREST
BRACKET, RIGHT BLACK |
|
|
| 12. |
9430692000 |
HEXAGON
NUT |
|
|
| 13. |
9014396000 |
SAFETY
WASHER |
|
|
| 14. |
9014593000 |
ALLAN
SCREW |
|
|
| 15. |
9444585000 |
WASHER |
|
|
| 16. |
9014544000 |
FLANGE
BUTTON HEAD SCREW |
|
|
| 17. |
3427020000 |
BUFFER |
|
|
| 18. |
9013079000 |
REAR
FOOTREST, LEFT HAND |
|
|
| 19. |
3621125690 |
FOOTREST BRACKET, LEFT BLACK |
|
|
| 19. |
3621125680 |
FOOTREST BRACKET, LEFT |
|
|
| 20. |
3621080695 |
REAR
FRAME, BLACK |
|
|
| 20. |
3621080685 |
REAR
FRAME, WHITE |
|
|
|
