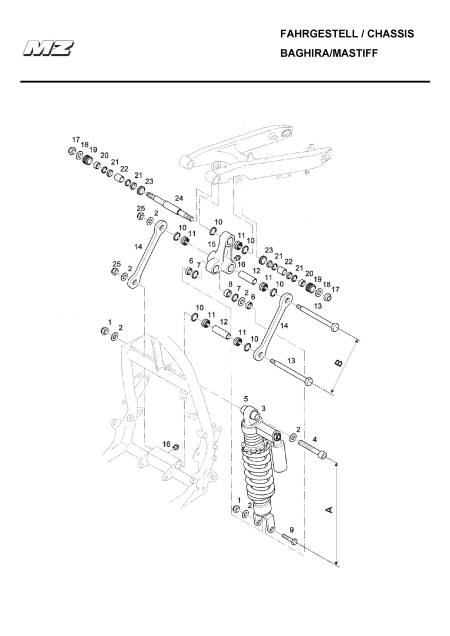

Baghira / Mastiff Rear Suspension

# Part Number Description Price Cart
1. 9430373000 HEXAGON NUT
2. 9436183000 DISK
3. 9014207000 SHOCK ABSORBER B=412mm
4. 9014425000 ALLAN SCREW
5. 9014206000 SHOCK ABSORBER B=425mm
6. 9013119000 SLEEVE
7. 9013127000 SHAFT SEAL
8. 9013131000 BEARING
9. 9013107000 SCREW
10. 9014357000 SHAFT SEAL
11. 9014321000 NEEDLE BEARING
12. 3426028000 BEARING SLEEVE
13. 9013106000 SCREW
14. 3626040000 PULL ROD A=118
15. 3626037005 ASSEMBLY CRESCENT PART COMPLETE
  3626034005 ASSEMBLY CRESCENT PART WITHOUT INNER PARTS
16. 9014253000 GREASE NIPPLE
17. 9014431000 NUT
18. 9436423000 WASHER
19. 3626031000 PROTECTING TUBE (ROUGH LENGTH 15mm)
20. 3626017000 SPACER
21. 9014223000 RINGFEDER (RING SPRING)
22. 3626052000 SPACER
23. 3626032000 PROTECTING TUBE (ROUGH LENGTH 5mm)
24. 3626055005 BOLT FOR SWING LEVER
25. 9013408000 HEXAGON NUT
