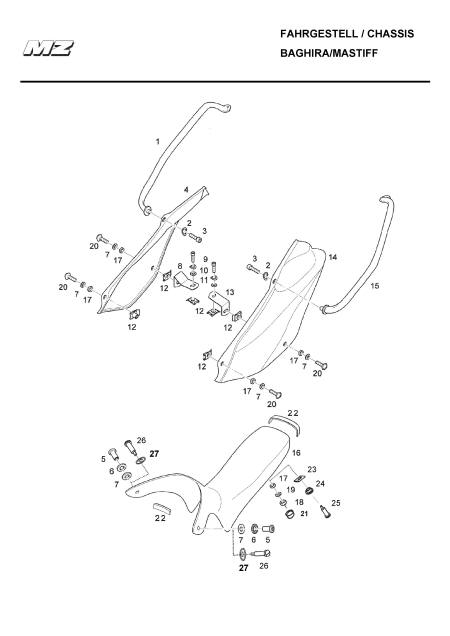

Baghira / Mastiff Seat

# Part Number Description Price Cart
1. 3631011715    RIGHT BRACKET, ROUGH BLACK
1. 3631011750 RIGHT BRACKET, WHITE AL
1. 3631011690 RIGHT BRACKET, BLACK BRIGHT
1. 3631011600 RIGHT BRACKET BLACK, CHROMIUM PLATED
2. 9438386000 SPRING WASHER
3. 9412440000 ALLAN SCREW
4. 3632020 COVERING RIGHT, PAINTED OR ORIGINAL COLOURED, WITH OR WITHOUT FOIL
  3632020196 SIDE PANEL, RIGHT BLACK
  3632020475 SIDE PANEL, RIGHT YELLOW
  3632020C45 SIDE PANEL, RIGHT DARK SILVER
5. 9014443000 HULL NUT
6. 3627025000 DISK
7. 9435648000 NYLON DISK
8. 3632008000 HOLDER RIGHT
9. 9403962000 HEXAGON SCREW
10. 9438365000 SPRING WASHER
11. 9436013000 DISK
12. 9013260000 PLATE NUT
13. 3633008000 HOLDER LEFT
14. 3633029 COVERING RIGHT, PAINTED OR ORIGINAL COLOUR WITH OR WITHOUT FOIL
  3633029196 SIDE FAIRING LEFT, BLACK
  3633029C45 SIDE FAIRING LEFT, DARK SILVER
  3633029A46 SIDE FAIRING LEFT, RED
  3633029475 SIDE FAIRING LEFT, YELLOW
15. 3631010715 LEFT BRACKET, BLACK ROUGH
15. 3631010750 LEFT BRACKET, ALUMINIUM
15. 3631010600 LEFT BRACKET BLACK, CHROMIUM PLATED ***
16. 3631008835 SEAT WITH FASTENING BOLT, BLACK
16. 3631008815 SET SEAT WITH FASTENING BOLT, RED-ORANGE
17. 3430010000 DISTANCE SLEEVE
18. 9430522000 HEXAGON NUT *
19. 9436062000 DISK *
20. 9014378000 BUTTON HEAD SCREW
21. 9014462000 COVER *
22. 9420184000 RUBBER STRIP
23. 3621022000 COVER TUBE
24. 3631023590 COLLAR BUSH
25. 9014705000 FASTENING BOLT
26. 9014704000 FASTENING BOLT
27. 3627044570 DISK, BLACK


*

 SEAT FASTENING WITH NUTS
