Baghira /

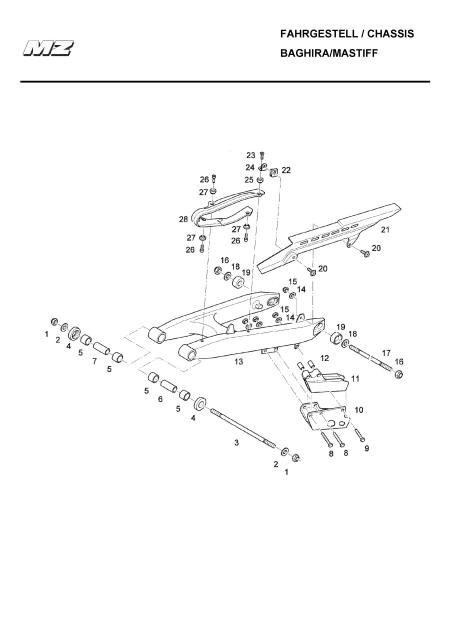

Mastiff Swing Arm
| # |
Part Number |
Description |
Price |
Cart |
| 1. |
9014546000 |
HEXAGON
NUT |
|
|
| 2. |
3426028000 |
BEARING
SLEEVE |
|
|
| |
0018156000 |
WASHER |
|
|
| 3. |
3626030000 |
SWING
BEARING BOLT |
|
|
| 4. |
3626029000 |
COVER |
|
|
| 5. |
9014241000 |
NEEDLE
SLEEVE |
|
|
| 6. |
3626011000 |
BEARING BUSH, LEFT 68mm |
|
|
| 7. |
3626012000 |
BEARING BUSH, RIGHT
82mm |
|
|
| 8. |
9014312000 |
SCREW |
|
|
| 9. |
9404096000 |
HEXAGON
SCREW |
|
|
| 10. |
9014247000 |
HOLDER
FOR CHAIN GUIDE |
|
|
| 11. |
9014226000 |
CHAIN
GUIDE |
|
|
| 12. |
3626028000 |
DISTANCE SLEEVE |
|
|
| 13. |
3626080005 |
SWING
FORK COMPLETE |
|
|
| 14. |
9436013000 |
WASHER |
|
|
| 15. |
9430098000 |
HEXAGONAL NUT |
|
|
| 16. |
9014546000 |
HEXAGON
NUT |
|
|
| 17. |
3625020000 |
AXLE |
|
|
| 18. |
0018156000 |
WASHER |
|
|
| 19. |
3625021000 |
WASHER |
|
|
| 20. |
9014367000 |
FLANGE
BUTTON HEAD SCREW |
|
|
| 21. |
9014248000 |
CHAIN
PROTECTOR |
|
|
| 22. |
9013278000 |
PAN
HEAD NUT |
|
|
| 23. |
9014432000 |
COUNTER
HEAD SCREW |
|
|
| 24. |
3626026000 |
HOLDER FOR
SWING ARM PROTECTOR |
|
|
| 25. |
3626027000 |
FLAT SLEEVE
FOR CHAIN PROTECTOR |
|
|
| 26. |
9411552000 |
ALLAN
SCREW |
|
|
| 27. |
3626025000 |
SLEEVE FOR
SWING ARM PROTECTOR |
|
|
| 28. |
9014224000 |
CHAIN AND
SWING ARM PROTECTOR |
|
|
| 29. |
9014480000 |
HEXAGON
SCREW |
|
|
| 30. |
9430694000 |
HEXAGON
NUT |
|
|
|
