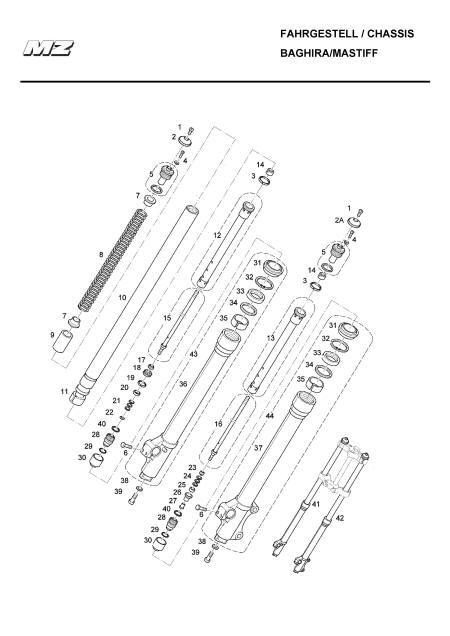

Baghira Front Forks

# Part Number Description Price Cart
1. 9022050000 SCREW
2. 9022051000 KNOB, RIGHT
2a. 9022086000 KNOB, LEFT
3. 9022062000 RING
4. 9022052000 SCREW C/W O-RING
5. 9022053000 UPPER PLUG C/W O-RING
6. 9412971000 SCREW
7. 9022057000 SPRING GUIDE
8. 9022058000 SPRING
9. 9022059000 PRE-LOAD SLEEVE
10. 9022060000 STANCHION TUBE
11. 9022061000 SLIDING BUSHING
12. 9022065000 DAMPING CARTRIDGE BODY, RIGHT
13. 9022066000 DAMPING CARTRIDGE BODY, LEFT
14. 9022056000 LOCK NUT
15. 9022067000 RIGHT HAND INNER ROD
16. 9022068000 LEFT HAND INNER ROD
17. 9022069000 REBOUND SPRING
18. 9022070000 RIGHT HAND PISTON
19. 9022088000 RIGHT HAND BUSH BRAKE
20. 9022089000 RIGHT HAND VALVE PIN
21. 9022071000 WASHER, RIGHT HAND
22. 9022072000 CHECK NUT
23. 9022090000 CAP
24. 9022091000 WASHER, LEFT HAND
25. 9022094000 LEFT HAND VALVE PIN
26. 9022095000 LEFT HAND DAMPING PISTON
27. 9022096000 NUT
28. 9022097000 FOOT VALVE
29. 9022073000 CIRCLIP
30. 9022074000 BOTTOM BUFFER
31. 9022122000 DUST SEAL
32. 9022076000 STOP RING
33. 9022120000 OIL SEAL 45-58-11   ( 580cc per leg ) 10w
34. 9022078000 STEEL WASHER
35. 9022079000 BUSHING
36. 9022084000 RIGHT HAND SLIDER
37. 9022085000 LEFT HAND SLIDER
38. 9022082000 OIL SEAL
39. 9022081000 SCREW
40. 9022098000 CIRCLIP
41. 9014303000 FORK STRUT RIGHT ADJUSTABLE
42. 9014302000 FORK STRUT LEFT ADJUSTABLE
43. 9022101000 RIGHT HAND SLIDER COMPLETE
44. 9022102000 LEFT HAND SLIDER COMPLETE
