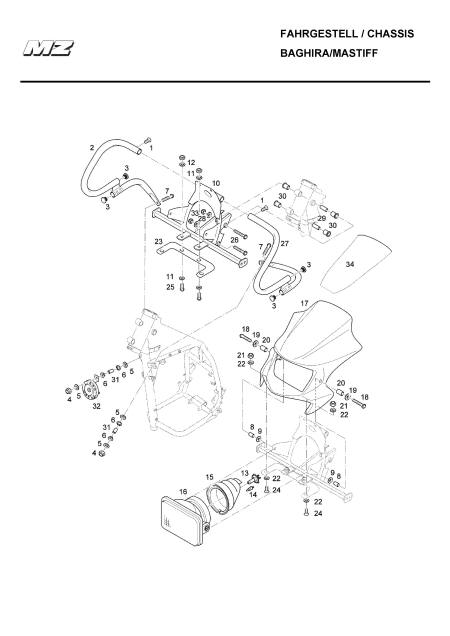

Baghira Head Light

# Part Number Description Price Cart
1. 9013399000 COUNTER HEAD SCREW
  9435865000 WASHER
  9438304000 SPRING WASHER
2. 3638205710 RIGHT FRONT BOW BLACK ROUGH
2. 3638205695 RIGHT FRONT BOW BLACK POLISHED
2. 3638205615 RIGHT FRONT BOW ALUMINIUM ELOX
3. 9635334000 STOPPER
4. 9430099000 HEXAGON NUT
5. 9436142000 DISK
6. 3434005000 RUBBER WASHER
7. 9014368000 FLANGE BUTTON HEAD SCREW
8. 3034731000 DISTANCE SLEEVE
9. 9436062000 DISK
10. 3638129505 HOLDER, BAGHIRA BLACK
10. 3638106685 HOLDER, BAGHIRA WHITE *
10. 3638106505 HOLDER, BAGHIRA BLACK *
11. 9436013000 DISK
12. 9430098000 HEXAGON NUT
13. 9525641000 LAMP 12v-60/55w
13. 9014451000 LAMP 12v-35/55w (UK)
14. 9525647000 GLASS SOCKET LAMP 12v/5w
15.   COVER (INTEGRATED PART OF HEADLAMP)
16. 9014539000 HEADLAMP (CLEAR GLASS)
16. 9014540000 HEADLAMP, LEFT UK
17. 3638001 FRONT FAIRING BLACK PAINTED OR COLOURED
  3638001475 FRONT FAIRING, YELLOW
  3638001840 FRONT FAIRING, BLACK
  3638001A45 FRONT FAIRING, FERRARI RED
  3638001C45 FRONT FAIRING, DARK SILVER
18. 9014376000 FLANGE BUTTON HEAD SCREW
19. 9435648000 NYLON DISK
20. 9014397000 DISTANCE SLEEVE
21. 9430242000 HEXAGON NUT
22. 9435945000 DISK
23. 3638125680 BRACKET FOR FRONT FAIRING, WHITE
23. 3638125690 BRACKET FOR FRONT FAIRING
24. 9420537000 SCREW
25. 9014367000 FLANGE BUTTON HEAD SCREW
26. 9014377000 FLANGE BUTTON HEAD SCREW
27. 3638204710 LEFT FRONT BOW BLACK ROUGH
27. 3638204695 LEFT FRONT BOW BLACK BRIGHT
27. 3638204615 LEFT FRONT BOW ALUMINIUM ELOX
28. 9444585000 WASHER
29. 3638108000 DISTANCE SLEEVE
30. 3634001000 RUBBER BUSH
31. 9021154000 DISTANCE SLEEVE
32. 9014969000 HORN 12v
33. 9430104000 NUT
34. 3620056000 STICKER FOR FRONT FAIRING
  3433036000 NEOPRENE RUBBER STRIP


*

UP TO 1999 MODEL
