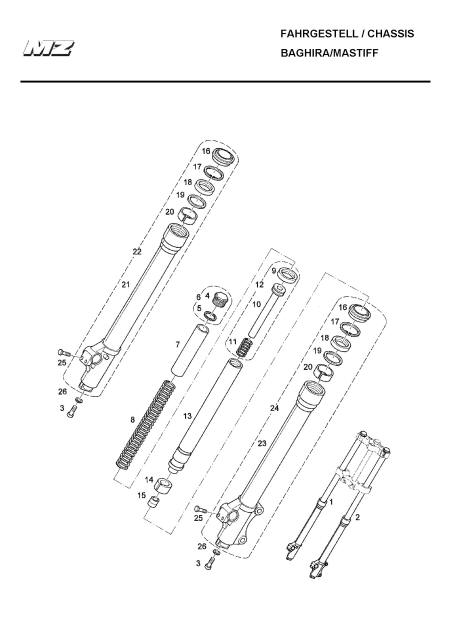

Mastiff Front Forks

# Part Number Description Price Cart
1 9014305000 RIGHT FORK ASSY
2 9014304000 LEFT FORK ASSY
3 9022081000 SCREW
4 9022054000 PLUG
5 9022055000 0-RING
6   NO SPARE PART
7 9022106000 PRE LOAD SLEEVE
8 9022107000 SPRING
9 9022063000 BUSH RING
10 9022064000 DAMPER ROD
11 9022018000 REBOUND SPRING
12 9022109000 DAMPER ROD COMPLETE
13 9022110000 STANCHION TUBE
14 9022111000 LOWER BUSH
15 9022112000 FOOT BUFFER
16 9022122000 DUST COVER
17 9022076000 STOP RING
18 902212000 OIL SEAL 45-58-11  ( 700cc ) 10w
19 9022078000 STEEL WASHER
20 9022113000 UPPER BUSH
21 9022084000 RIGHT SLIDER
22 9022115000 RIGHT SLIDER COMPLETE
23 9022085000 LEFT SLIDER
24 9022116000 LEFT SLIDER COMPLETE
25 9022087000 SCREW
26 9022082000 OIL SEAL
