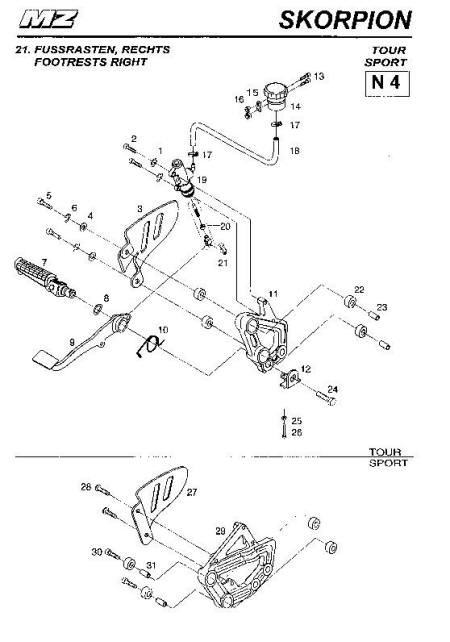

PART NUMBER |
DESCRIPTION |
|
| 1. |
9013073000 |
SPRING DISK
(TOUR,
SPORT, CUP) |
|
| 2. |
9013212000 |
FILLISTER HEAD
SCREW
(TOUR, SPORT, CUP) |
|
| 3. |
3425042000 |
COVER PLATE, RIGHT
(TOUR) |
|
| 4. |
9436142000 |
DISK
(SPORT + CUP) |
|
| 5. |
9013396000 |
SILVER
FILLISTER HEAD SCREW
(TOUR) |
|
| 6. |
9013095000 |
FOOTREST,
RIGHT
(TOUR, SPORT, CUP) |
|
| 7. |
9020510000 |
RUBBER FOR
FOOTREST (TOUR, SPORT,
CUP) |
|
| 8. |
9013113000 |
CORRUGATED
DISK
(TOUR, SPORT, CUP) |
|
| 9. |
3425049615 |
BRAKE PEDAL
(TOUR,
SPORT, CUP) |
|
| 10. |
3425058000 |
RETURN SPRING
(TOUR,
SPORT, CUP) |
|
| 11. |
3425024000 |
FOOTREST PLATE, RIGHT (TOUR) |
|
| 12. |
3425059000 |
STOP
(TOUR, SPORT,
CUP) |
|
| 13. |
9420537000 |
OVAL HEAD
SCREW
(TOUR, SPORT, CUP) |
|
| 14. |
9013342000 |
STORE TANK
(TOUR,
SPORT, CUP) |
|
| |
9021045000 |
COVER c/w
DIAPHRAGM (TOUR, SPORT,
CUP) |
|
| 15. |
9438304000 |
SPRING DISK
(TOUR,
SPORT, CUP) |
|
| 16. |
9430242000 |
HEXAGONAL NUT
(TOUR,
SPORT, CUP) |
|
| 17. |
9013365000 |
CLAMP
(TOUR, SPORT,
CUP) |
|
| 18. |
9013498000 |
BRAKE TUBE
(TOUR,
SPORT, CUP) |
|
| 19. |
9013047000 |
REAR WHEEL
BRAKE CYLINDER (TOUR, SPORT,
CUP) |
|
| |
9021107000 |
GASKET SET
MASTER CYLINDER REAR (TOUR, SPORT,
CUP) |
|
| |
9021108000 |
PISTON FOR
MASTER CYLINDER REAR COMPLETE (TOUR, SPORT,
CUP) * |
|
| |
9021110000 |
CONNECTING
PARTS MASTER CYLINDER REAR (TOUR, SPORT,
CUP) |
|
| 20. |
9016465000 |
FORCING LEVER
c/w LINK AND BOLT WITH SPRING (TOUR, SPORT,
CUP) |
|
| 21.
|
|
BOLT
(TOUR, SPORT,
CUP) ** |
|
| 22. |
3425052000 |
DAMPING RING
(TOUR,
SPORT, CUP) |
|
| 23. |
3425054000 |
DISTANCE SLEEVE
(TOUR) |
|
| 24. |
9013398000 |
HEXAGONAL BOLT
(TOUR,
SPORT, CUP) |
|
| 25. |
9430362000 |
HEXAGONAL NUT
(TOUR,
SPORT, CUP) |
|
| 26. |
9403407000 |
HEXAGONAL BOLT
(TOUR,
SPORT, CUP) |
|
| 27. |
3425043000 |
COVER PLATE,
RIGHT
(SPORT + CUP) |
|
| 28. |
9016251000 |
COUNTERSUNK
SCREW
(SPORT + CUP) |
|
| 29. |
3425027000 |
FOOTREST
PLATE, RIGHT (SPORT + CUP) |
|
| 30. |
9013459000 |
SILVER
FILLISTER HEAD SCREW (SPORT + CUP) |
|
| 31. |
3425053000 |
DISTANCE
SLEEVE
(SPORT + CUP) |
|
| |
|
|
|
|
|
* |
COMES
WITH PISTON, SPRING, DIAPHRAGM, 2 DISKS AND LOCKWASHER |
|
|
|
** |
NOT
DELIVERABLE |
|
