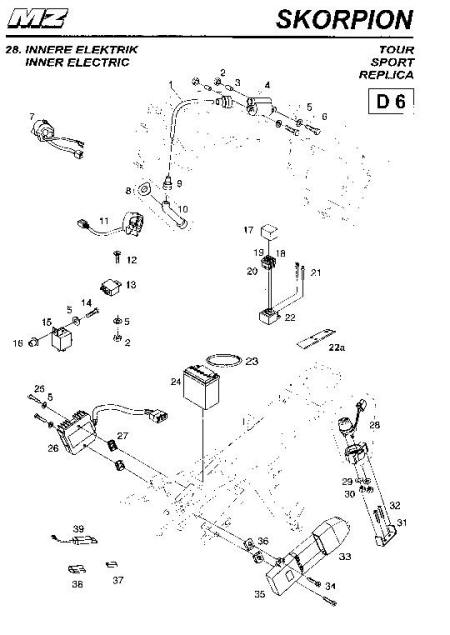

PART NUMBER |
DESCRIPTION |
|
| 1. |
|
NOT
DELIVERABLE |
|
| 2.
|
9430241000 |
HEXAGONAL NUT |
|
| 3.
|
3634050000 |
RUBBER BEARING |
|
| 4.
|
9013099000 |
IGNITION COIL COMPLETE |
|
| 5.
|
9435865000 |
DISK |
|
| 6.
|
9013238000 |
HEXAGONAL BOLT |
|
| 7.
|
9013205000 |
SWITCH, RIGHT |
|
| 8. |
|
COMPONENT OF PART 10. |
|
| 9.
|
9013341000 |
IGNITION CABLE BUSH |
|
| 10. |
9013102000 |
SPARK
PLUG SOCKET COMPLETE |
|
| 11. |
9013053000 |
SWITCH,
LEFT |
|
| 12. |
9013284000 |
SCREW |
|
| 13. |
9016127000 |
RELAY
|
|
| |
9520163000 |
CUT OFF
RELAY |
|
| 14. |
9013488000 |
SCREW |
|
| 15. |
9014588000 |
FLASHER
UNIT |
|
| 16. |
9013267000 |
NUT
WITH RUBBER BUSH |
|
| 17. |
3434022000 |
COVER FOR FUSE
BOX OLD (DOUBLE) |
|
| |
3434054000 |
COVER FOR FUSE
BOX NEW (TRIPLE) |
|
| |
9013462000 |
LABEL
FOR FUSE (DOUBLE BOX) |
|
| |
9013469000 |
LABEL
FOE FUSE (TRIPLE BOX) |
|
| 18. |
9445657000 |
FUSE
3amp |
|
| 19. |
9520678000 |
FUSE
7amp |
|
| 20. |
9520620000 |
FUSE
15amp |
|
| 21. |
9013286000 |
PAN
HEAD TAPPING SCREW |
|
| 22. |
9013042000 |
SAFETY BOX
COMPLETE (DOUBLE) |
|
| |
3434055005 |
SAFETY
BOX COMPLETE (TRIPLE) |
|
| |
3434074000 |
RUBBER
PIECE FOR SAFETY BOX |
|
| 23. |
9013463000 |
O-RING |
|
| 24. |
9014537000 |
BATTERY |
|
| 25. |
9013500000 |
PAN
HEAD SCREW |
|
| 26. |
9013105000 |
RECTIFIER + CONTROLLER |
|
| 27.
|
9013609000 |
FIXING
NUT |
|
| 28. |
9013098000 |
STARTER
RELAY |
|
| 29. |
9438365000 |
SPRING
WASHER |
|
| 30. |
9430483000 |
HEXAGONAL NUT |
|
| 31. |
3434036005 |
BEARER ANGLE
FOR STARTER RELAY |
|
| 32. |
9013288000 |
PAN
HEAD TAPPING SCREW |
|
| 33. |
9021231000 |
COVER
FOR IGNITION DEVICE |
|
| 34. |
9414137000 |
PAN
HEAD TAPPING SCREW |
|
| 35. |
9013101000 |
IGNITION DEVICE |
|
| |
3434023000 |
STARTER
CABLE |
|
| |
3434024000 |
POSITIVE CABLE |
|
| |
3434025000 |
MASS
CABLE |
|
| |
3434026000 |
CABLE
HARNESS (TOUR) |
|
| |
3434082000 |
CABLE HARNESS
'98 MODEL (SPORT) |
|
| |
3434029000 |
CABLE HARNESS
UP TO '97 MODEL (SPORT + CUP) |
|
| |
3434063000 |
CABLE HARNESS
USA UP TO '97 MODEL (SPORT) |
|
| |
3434064000 |
CABLE
HARNESS USA
(TOUR) |
|
| |
3434075000 |
CABLE
HARNESS
(TRAVELLER) * |
|
| |
3434056000 |
CABLE
HARNESS
(REPLICA) |
|
| |
3434057000 |
CABLE
HARNESS USA
(REPLICA) |
|
| |
3434077000 |
CABLE HARNESS
FOR HEADLAMP (TOUR)
* |
|
| 36. |
9430137000 |
SNAP
NUT |
|
| 37. |
9013603000 |
RELAY
(DISCONNECTION LIGHT) ** |
|
| 38. |
3034578000 |
BUCKED
FOR RELAY ** |
|
| 39. |
9013484000 |
DISCONNECTION VALVE ** |
|
|
|
* |
TOUR
C/W COMPLETE FAIRING |
|
|
|
** |
USA
VERSION |
|
