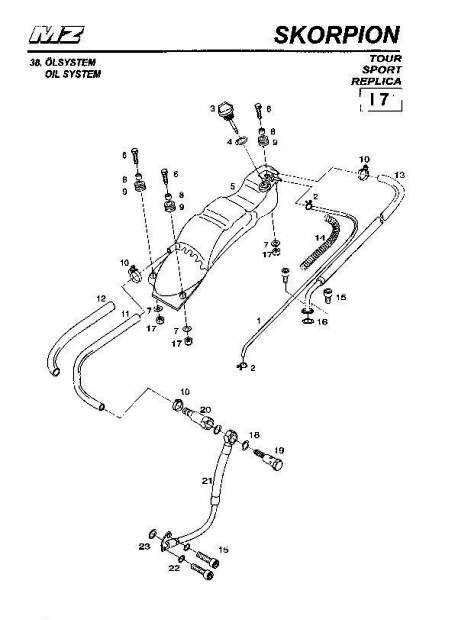

Oil System

PART NUMBER DESCRIPTION Add To Cart
1.  3427059005 VENTILATION TUBE COMPLETE (TOUR)
1.  3427060005 VENTILATION TUBE COMPLETE (SPORT, CUP, REPLICA)
2.  9013361000 CLAMP
3.  3427027005 LOCK
4.  9673000000 O-RING
5.  3427028005 OIL TANK
6.  9404096000 HEXAGONAL BOLT
     9404249000 HEXAGONAL BOLT (REPLICA)
7.  9436062000 DISK
8.  3427038000 SLEEVE
9.  9013242000 CABLE FUNNEL
10. 9013038000 HOSE BAND CLIP
11. 9013332000 OIL TUBE
12. 9013602000 PROTECTION HOSE             X
13. 9013062000 UPPER OIL PIPE
14. 3427045000 PROTECTION SPRING
15. 9412891000 FILLISTER HEAD SCREW
16. 9013063000 O-RING
17. 9430098000 HEXAGONAL NUT
18. 9632328000 RING
19. 9013333000 OIL SCREEN BOLT
20. 3420025000 OIL SCREEN CASING
21. 9013064000 BOTTOM OIL PIPE
22. 9013412000 TOOTH WASHER

23. 9013065000

O-RING


     3427039000 INFO SIGN OIL CONTROL
     9013469000 INFO LABEL FUSE BOX


X

DELIVERED IN METER PIECES

X
