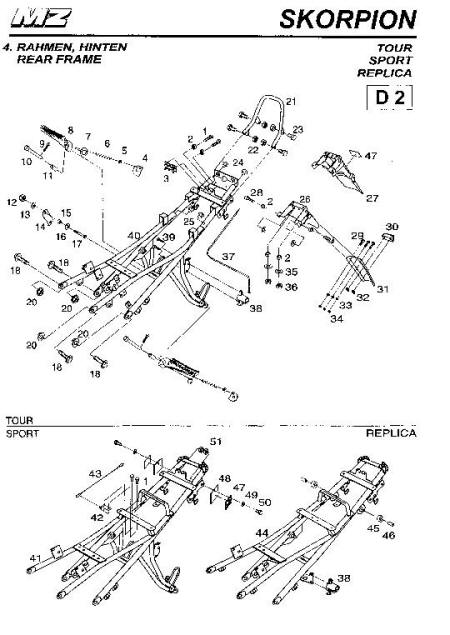

Rear Frame
|
PART NUMBER |
DESCRIPTION |
|
| 1.
9013256000 |
HEXAGONAL BOLT |
|
| 2.
3429008000 |
DISTANCE SLEEVE |
|
| 3.
9013134000 |
SEAT LOCK |
|
| 4.
9013080000 |
SPECIAL DISK (TOUR, SPORT,
CUP) |
|
| 5.
9400902000 |
BALL (TOUR, SPORT, CUP) |
|
| 6.
9013124000 |
PRESSURE
SPRING (TOUR, SPORT,
CUP) |
|
| 7.
9436013000 |
DISK (TOUR, SPORT, CUP) |
|
| 8.
9013079000 |
FOOT REST 1
BACK (TOUR, SPORT,
CUP) |
|
|
9013081000 |
REAR FOOTREST,
RIGHT (TOUR, SPORT,
CUP) |
|
| 9.
9013464000 |
SPLIT
PIN (TOUR,
SPORT, CUP) |
|
| 10.
9013126000 |
CLEVIS
PIN (TOUR,
SPORT, CUP) |
|
| 11.
9013116000 |
SLEEVE (TOUR, SPORT, CUP) |
|
| 12.
9430886000 |
HEXAGONAL NUT,
FLAT (TOUR, SPORT,
CUP) |
|
| 13.
9438425000 |
SPRING WASHER (TOUR, SPORT,
CUP) |
|
| 14.
9014733000 |
EXHAUST HOLDER (TOUR, SPORT,
CUP) |
|
| 15.
9013335000 |
RUBBER
BUFFER |
|
| 16.
9436183000 |
DISK (TOUR, SPORT, CUP) |
|
| 17.
9408927000 |
HEXAGONAL BOLT (TOUR, SPORT,
CUP) |
|
| 18.
9013319000 |
BOLT |
|
| 20.
9013320000 |
HEXAGONAL NUT |
|
| 21.
3431020690 |
HOLDING
SHACKLE (TOUR) |
|
| 22.
9430723000 |
HEXAGONAL NUT
(TOUR) |
|
| 23.
9405378000 |
HEXAGONAL BOLT
(TOUR) |
|
| 24.
9013415000 |
COVER PLUG
DIAMETER (TOUR, SPORT,
CUP) |
|
| 25.
9013414000 |
COVER
PLUG DIAMETER |
|
| 26.
3430006000 |
END PIECE,
UPPER PART (TOUR, SPORT,
CUP) |
|
| 27.
3430017000 |
END PIECE
UPPER PART (REPLICA) |
|
| 28.
9412891000 |
FILLISTER HEAD SCREW |
|
| 29.
9013245000 |
OVAL HEAD
SCREW (TOUR, SPORT,
CUP) |
|
|
9013488000 |
SCREW,
BLACK (REPLICA) |
|
| 30.
9013026000 |
REAR REFLECTOR (TOUR, SPORT*,
CUP*) |
|
|
9013481000 |
PLASTIC
RIVET (SPORT &
CUP) |
|
| 31.
3430009000 |
ELONGATION (TOUR, SPORT,
CUP) |
|
|
3430018000 |
ELONGATION
(REPLICA) |
|
|
9013481000 |
PLASTIC RIVET,
ELONGATION WITHOUT REAR REFLECTOR (SPORT & CUP) |
|
| 32.
9013071000 |
SPRING
NUT |
|
| 33.
9013247000 |
DISK |
|
| 34.
9013455000 |
HEXAGONAL NUT |
|
| 35.
9436062000 |
DISK |
|
| 36.
9430522000 |
HEXAGONAL NUT |
|
| 37.
3431029000 |
SHEETED CABLE (TOUR, SPORT,
CUP) |
|
|
3431035000 |
SHEETED
CABLE (REPLICA) |
|
| 38.
9013039000 |
HELMET,
SEAT LOCK |
|
| 39.
8050612000 |
BREAK
OFF SCREW |
|
| 40.
3421068505 |
REAR
FRAME (TOUR) |
|
| 41.
3421069505 |
REAR
FRAME (TOUR &
CUP) |
|
| 42.
3421180000 |
LOCKING
COMPLETE (SPORT, CUP,
REPLICA) |
|
| 43.
3431026000 |
UNLOCK CORD
FOR DRIVER SEAT LOCK (SPORT & CUP) |
|
|
3431028000 |
CONNECTING CORD
(REPLICA) |
|
| 44.
3421195505 |
REAR
FRAME (REPLICA) |
|
| 45.
9014010000 |
CABLE
FUNNEL (REPLICA) |
|
| 46.
3428031000 |
DISTANCE SLEEVE
(REPLICA) |
|
| 47.
9521124000 |
CATS
EYE SIDEWAYS RED * |
|
| 48.
3430022000 |
RETAINER FOR
CATS EYE SIDEWAYS (TOUR, SPORT,
CUP) * |
|
| 49.
0018211000 |
WASHER (SPORT & CUP)
* |
|
| 50.
9405378000 |
HEXAGONAL
SCREW (TOUR, SPORT,
CUP) |
|
| 51.
9430723000 |
HEXAGONAL NUT (TOUR, SPORT,
CUP) |
|
| |
|
|
|
* |
USA VERSION |
|
|
** |
ONE CATS EYE STICK ON RIGHT RETAINER AND ONE CATS EYE STICK
ON THE LEFT
(REPLICA) |
|
|
