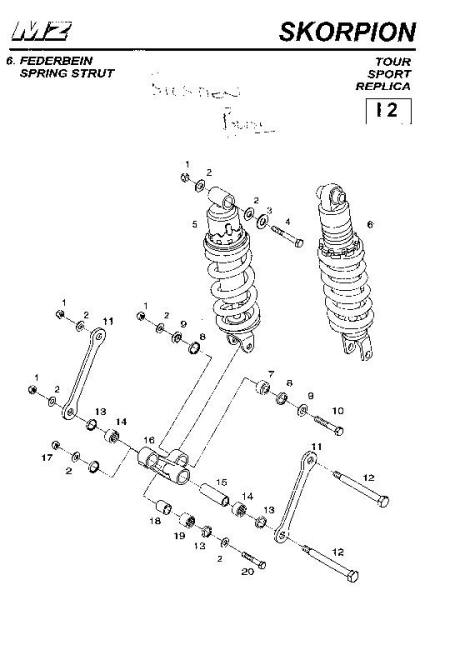

Rear Shock
|
PART NUMBER |
DESCRIPTION |
|
| 1.
9013408000 |
HEXAGONAL NUT |
|
| 2.
9436183000 |
DISK |
|
| 3.
9013421000 |
DISK |
|
| 4.
9013110000 |
SCREW |
|
| 5.
9013221000 |
SPRING STRUT
(TOUR,
SPORT, CUP) |
|
| 6.
3426041000 |
SPRING STRUT
COMPLETE (REPLICA) |
|
| 7.
9013131000 |
BALL BEARING |
|
| 8.
9013127000 |
SHAFT SEAL |
|
| 9.
9013119000 |
SLEEVE |
|
| 10.
9013107000 |
SCREW |
|
| 11.
3426045000 |
PULL ROD,
LENGTH 142mm (TOUR*
& SPORT*) |
|
|
3426056000 |
PULL ROD,
LENGTH 127mm (CUP &
REPLICA) |
|
|
3426044000 |
PULL ROD,
LENGTH 135mm (TOUR & SPORT) |
|
| 12.
9013106000 |
SCREW |
|
| 13.
9013128000 |
GASKET
RING |
|
| 14.
9013129000 |
NEEDLE
BEARING |
|
| 15.
9013118000 |
SLEEVE |
|
| 16.
3626034005 |
ASSEMBLY CRESCENT PART |
|
|
9014253000 |
GREASE
NIPPLE |
|
| 17.
9430373000 |
HEXAGONAL NUT |
|
| 18.
9013117000 |
SLEEVE |
|
| 19.
9013130000 |
NEEDLE
BEARING |
|
| 20.
9013237000 |
SCREW
(TOUR, SPORT,
CUP) |
|
|
9411635000 |
SCREW
(REPLICA) |
|
| |
|
|
|
* |
HEIGHT REDUCING, SEE "ACCESSORIES" |
|
|
