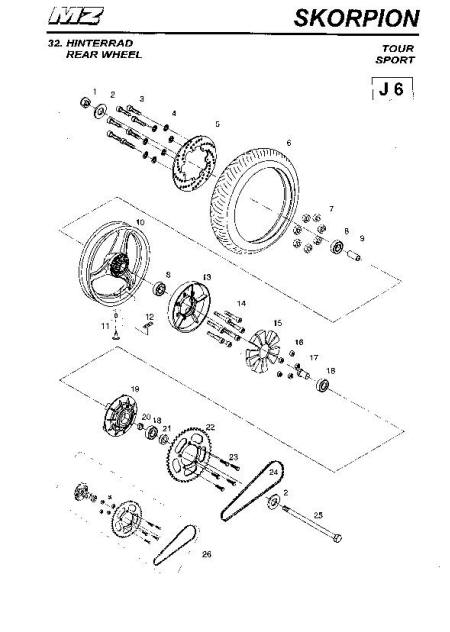

PART NUMBER |
DESCRIPTION |
|
| 1.
9013203000 |
HEXAGONAL NUT
(TOUR,
SPORT, CUP) |
|
| 2.
3425008000 |
DISK FOR REAR
WHEEL AXLE (TOUR, SPORT,
CUP) |
|
| 3.
9412457000 |
FILLISTER HEAD
SCREW
(TOUR, SPORT, CUP) |
|
| 4.
9013166000 |
TOOTH LOCK
WASHER
(TOUR, SPORT, CUP) |
|
| 5.
9013179000 |
BRAKE
DISK (TOUR,
SPORT, CUP) |
|
| 6.
9013019000 |
130/80VB17 COMP
(TOUR) * |
|
|
9013480000 |
150/60ZR17 DRAGON
(TOUR) ** |
|
|
9013018000 |
150/60ZR17
RACING
(SPORT + CUP) |
|
| 7.
9021215000 |
HEXAGONAL NUT
(TOUR,
SPORT, CUP) |
|
| 8.
9013177000 |
BALL BEARING
6203
(TOUR, SPORT, CUP) |
|
| 9.
9013178000 |
DISTANCE PIPE
(TOUR, SPORT, CUP) |
|
| 10.
9021212000 |
REAR WHEEL
WITH BEARINGS (TOUR + SPORT) |
|
|
9021212410 |
REAR WHEEL
WITH BEARINGS, BLACK |
|
| 11.
9013024000 |
VALVE COMPLETE
(TOUR,
SPORT, CUP) |
|
| 12.
9013167000 |
BALANCE WEIGHT
(TOUR,
SPORT, CUP) |
|
| 13.
9013182000 |
DAMPER BODY
(TOUR,
SPORT, CUP) |
|
| 14.
9013183000 |
FILLISTER HEAD
SCREW
(TOUR, SPORT, CUP) |
|
| 15.
9013185000 |
DAMPING RUBBER
(TOUR,
SPORT, CUP) |
|
| 16.
9430104000 |
HEXAGONAL NUT
(TOUR,
SPORT, CUP) |
|
| 17.
9013187000 |
INTERNAL
BEARING BUSH (TOUR, SPORT, CUP) |
|
| 18.
9013188000 |
BALL BEARING
6204
(TOUR, SPORT, CUP) |
|
| 19.
9013190000 |
DRIVER C/W
BEARING AND BUSH (TOUR, SPORT,
CUP) |
|
| 20.
9013189000 |
DISTANCE
SLEEVE
(TOUR, SPORT, CUP) |
|
| 21.
9013186000 |
OUTER BEARING
BUSH (TOUR, SPORT, CUP) |
|
| 22.
9013192000 |
CHAIN
WHEEL 43 TEETH
(TOUR)* |
|
|
9013191000 |
CHAIN WHEEL 39
TEETH
(TOUR**, SPORT, CUP) |
|
|
9021218000 |
CHAIN WHEEL 44
TEETH (SPECIAL ORDER ONLY) (TOUR, SPORT,
CUP) |
|
| 23.
9410842000 |
HEXAGONAL NUT
(TOUR,
SPORT, CUP) |
|
| 24.
9014216000 |
O-RING CHAIN
5/8"x1/4"x110R (TOUR)* |
|
|
9013381000 |
O-RING CHAIN
5/8"x1/4"x108R (TOUR**, SPORT, CUP) |
|
| 25.
9013202000 |
AXLE C/W NUT
(TOUR,
SPORT, CUP) |
|
| 26.
9021225005 |
CHAIN SET
(TOUR,
SPORT, CUP)
*** |
|
| |
|
|
|
* |
TOUR
MODEL 94 WITH TYRES 130/80 |
|
|
** |
TOUR
FROM MODEL 95 WITH TYRES 150/60 ONLY WITH CHAIN WHEEL AND/OR
DRIVER 39 TEETH |
|
|
*** |
INCLUDE: CHAIN, SPROCKET CHAIN WHEEL, SCREWS AND LOCKING
PARTS |
|
