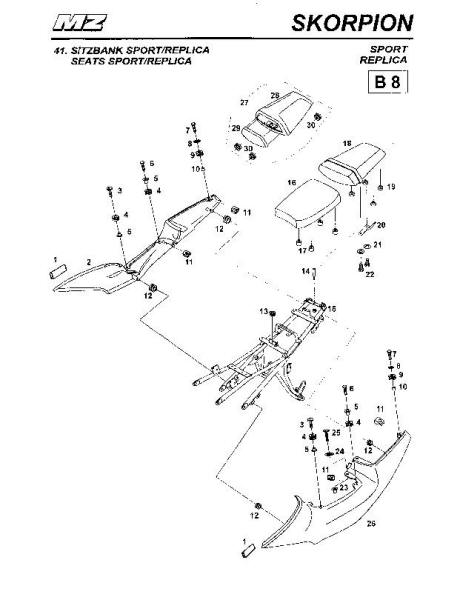

PART NUMBER |
DESCRIPTION |
|
| 1.
3432026000 |
PROTECTION RUBBER STRIP |
|
| 2.
3432012195 |
R/H FAIRING, BLACK
(SPORT) |
|
|
3432012240 |
R/H FAIRING, YELLOW (SPORT) |
|
|
3433012290 |
R/H FAIRING, PEARLY GREEN
(SPORT) |
|
|
3433012385 |
R/H
FAIRING, BLUE (SPORT) |
|
|
3433012A45 |
R/H FAIRING,
FERRARI RED (SPORT) |
|
|
3432012405 |
R/H FAIRING, ORANGE
(SPORT) |
|
| 2.
3432012250 |
R/H FAIRING,
WHITE ALUMINIUM METALLIC (REPLICA) |
|
| 3.
9013413000 |
COUNTERSUNK SLOTTED
BOLT |
|
| 4.
9013257000 |
RUBBER
BUSH |
|
| 5.
9013258000 |
DISTANCE BUSH |
|
| 6.
9404249000 |
HEXAGONAL BOLT |
|
| 7.
9404096000 |
HEXAGONAL BOLT |
|
| 8.
9436062000 |
WASHER |
|
| 9.
9013029000 |
RUBBER
BUSH 9 NUMBER 2268 |
|
| 10.
3427038000 |
SLEEVE |
|
| 11.
9013260000 |
PLATE
NUT |
|
| 12.
9013031000 |
HOOK
BUSH |
|
| 13.
9013029000 |
RUBBER
BUSH (SPORT+
CUP) |
|
| 14.
3431074000 |
ARRESTER BOLT
(REPLICA) |
|
| 16.
3431007000 |
DRIVER
SEAT |
|
| 17.
9013253000 |
BEARING
ELEMENT 34 00015 |
|
| 18.
3431005000 |
PILLION
SEAT |
|
| 19.
9013254000 |
BEARING
ELEMENT 34 0001 |
|
| 20.
3431030000 |
LOCK
SHACKLE (SPORT) |
|
| 21.
9021136000 |
RUBBER WASHER
FOR LOCK SHACKLE FASTENING |
|
| 22.
9404248000 |
HEXAGONAL BOLT |
|
| 23.
9013267000 |
NUT
|
|
| 24.
9013266000 |
WASHER
POLYAMIDE |
|
| 25.
9013488000 |
COUNTERSUNK SCREW |
|
| 26.
3433022195 |
L/H FAIRING, BLACK
(SPORT) |
|
|
3433022240 |
L/H
FAIRING, YELLOW (SPORT) |
|
|
3433022290 |
L/H FAIRING, PEARLY GREEN
(SPORT) |
|
|
3433022385 |
L/H FAIRING,
PEARLY BLUE (SPORT) |
|
|
3433022405 |
L/H FAIRING, ORANGE
(SPORT) |
|
| 26.
3433022250 |
L/H FAIRING,
WHITE ALUMINIUM METALLIC (REPLICA) |
|
| 27. |
THESE PARTS
ARE NO LONGER AVAILABLE |
|
| 28.
|
|
| 29.
|
|
| 30.
9675830000 |
RUBBER
BUSH |
|
|
9013368000 |
CELLULAR RUBBER STRIP
X |
|
| |
|
|
|
X |
DELIVERED IN METERS PIECES |
|
| |
|
|
|
9021481000 |
STICKER
SET "SKORPION SPORT" UP TO 97', SILVER |
|
|
9021482000 |
STICKER
SET "SKORPION SPORT" UP TO 97', BLACK |
|
|
3420083000 |
STICKER
"SKORPION SPORT" FROM 98', GREEN |
|
|
9021486000 |
STICKER
SET "SKORPION CUP" BLACK |
|
|
9021487000 |
STICKER
SET "SKORPION CUP" SILVER |
|
