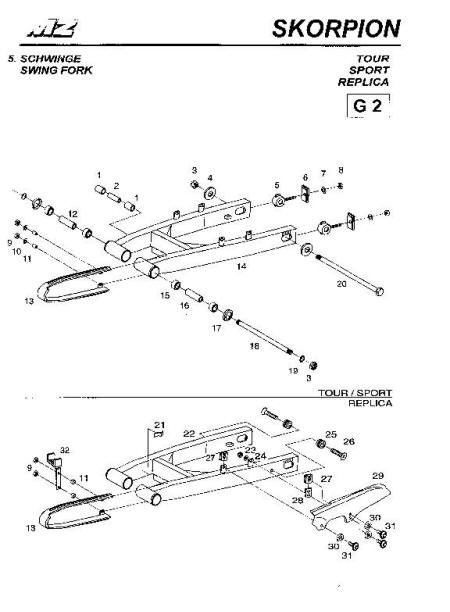

Swing Arm

PART NUMBER DESCRIPTION
1.  9013002000 NEEDLE SLEEVE
2.  3426028000 BEARING SLEEVE
3.  9013203000 HEXAGONAL NUT
3.  9014037000 NUT FOR AXLE (REPLICA)
4.  3425008000 DISK FOR AXLE
5.  3425012005 CHAIN ADJUSTER
6.  3425011000 SUPPORT PLATE
7.  9444585000 DISK
8.  9430104000 HEXAGONAL NUT
9.  9430242000 HEXAGONAL NUT
10. 9013344000 DISK (TOUR, SPORT, CUP)
11. 3430010000 DISTANCE SLEEVE
12. 3426022000 BEARING BUSH RIGHT
13. 3426026000 CHAIN AND SWING ARM PROTECTION
14. 3426003755 SWING FORK (TOUR & SPORT)
14. 3426003415 SWING FORK, BLACK (CUP)
15. 9013001000 NEEDLE SLEEVE
16. 3426021000 BEARING BUSH, LEFT
17. 3426023000 COVER
18. 3426030000 SWING BEARING BOLT
19. 0018156000 DISK
20. 9013202000 AXLE WITH NUT
21. 9013470000 CABLE HOLDER
22. 3426033755 SWING FORK COMPLETE (REPLICA)
23. 9430098000 HEXAGONAL NUT (REPLICA)
24. 9436062000 DISK (REPLICA)
25. 3426038000 PICK UP (REPLICA)
26. 9415138000 ALLEN SCREW (REPLICA)
27. 9013432000 PAN HEAD NUT (REPLICA)
28. 3426039005 HOLDER FOR CHAIN PROTECTOR (REPLICA)
29. 3430015000 CHAIN PROTECTOR (REPLICA)
30. 3420009000 DISTANCE SLEEVE (REPLICA)
31. 9013244000 SCREW (REPLICA)
32. 3426048005 CHAIN GUIDE (REPLICA)
     9013466000 SCREW (REPLICA) *


*

BRAKE HOSE FASTENING ON SWING ARM
