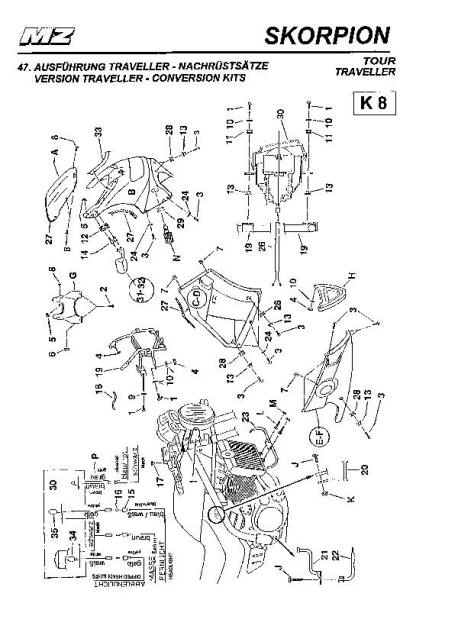

Fairing Conversion kit To Traveller



PART NUMBER

DESCRIPTION


  8070835280 CONVERSION KIT COMPLETE FAIRING
  8070835290 CONVERSION KIT COMPLETE FAIRING
  8070835390 CONVERSION KIT COMPLETE FAIRING
  8070835370 CONVERSION KIT COMPLETE FAIRING
  8050835000 CONVERSION KIT COMPLETE, UNPAINTED
1. 9412891000 FILLISTER HEAD SCREW
2. 8050815000 ALLEN SCREW M6x12
3. 8050814000 ALLEN SCREW M6x20
4. 8050811000 HEXAGONAL NUT
5. 8050812000 HEXAGONAL NUT
6. 8050813000 HEXAGONAL NUT
7. 8050821000 CAPTIVE NUT
8. 8050822000 PHILLIPS SCREW
9. 9013412000 TOOTH LOCK WASHER
10. 9436013000 WASHER
11. 8050823000 RUBBER CABLE GUIDE
12. 8050824000 PAD FOR MIRROR
13. 8050825000 BUSH C/W BEADING
14. 8050826000 SPLIT BUSH FOR MIRROR
15. 8050816000 CAP FOR TERMINAL STRIP
16. 8050817000 TERMINAL STRIP
17. 8050827000 PLUG
18. 8050842000 CABLE CLAMP
19. 8050841000 UPPER HOLDER
20. 8050828000 LATERAL HOLDER
21. 8050829000 LOWER HOLDER, LEFT
22. 8050830000 LOWER HOLDER, RIGHT
23. 8050831000 RADIATOR STRUT
24. 8050832000 WASHER
25. 8050818000 CABLE HOLDER HEAD LAMP
26. 8050840000 RUBBER TREAD, LENGTH 2900mm
27. 8050823000 RUBBER CABLE GUIDE
28. 8050834000 RUBBER CABLE GUIDE
29. 8050835000 HEADLAMP FOR RIGHT HAND SIDE TRAFFIC
  8050808000 HEADLAMP FOR LEFT HAND SIDE TRAFFIC
30. 9013268000 HEADLAMP DOT USA
31. 8050836000 MIRROR, LEFT (BLACK)
32. 8050837000 MIRROR, RIGHT (BLACK)
33. 8050839000 ADHESIVE TAPE PVC 650mm
34. 9013270000 LAMP 12v/55w
35. 9525658000 LAMP 12v/55w
  8050819000 HOLDER KIT FOR FAIRING

A. 8050850000 DOME BLIND
B. 8050843195 FAIRING UPPER PART, BLACK
  8050843295 FAIRING UPPER PART, PEARLY GREEN
  8050843475 FAIRING UPPER PART, YELLOW
  8050843375 FAIRING UPPER PART, TURQUOISE
  8050843395 FAIRING UPPER PART, GREEN
C. 8050844195 SIDE PART, RIGHT, BLACK
  8050844275 SIDE PART, RIGHT, PEARLY BLUE
  8050844475 SIDE PART, RIGHT, YELLOW
  8050844
