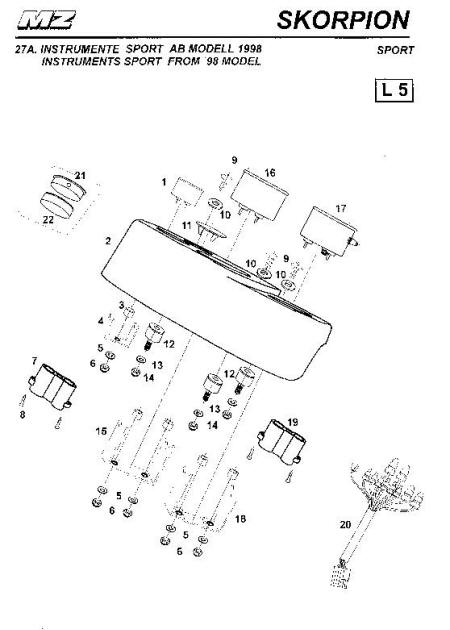

Instruments
Sport 98 on
| |
PART NUMBER |
DESCRIPTION |
|
| |
3434094005 |
PANEL FOR
INSTRUMENTS COMPLETE KM/H |
|
| |
3434095005 |
PANEL FOR
INSTRUMENTS COMPLETE, MILES |
|
| 1. |
9014751000 |
COOLANT TEMPERATURE
GAUGE |
|
| 2. |
3434089000 |
PANEL
FOR INSTRUMENTS |
|
| 3. |
3434069000 |
DISTANCE SLEEVE |
|
| 4. |
3434093005 |
CLAMP |
|
| 5. |
9438304000 |
SPRING WASHER |
|
| 6. |
9430362000 |
HEXAGON NUT |
|
| 7. |
9014752000 |
PILOT LAMP, RIGHT |
|
| 8. |
9014290000 |
SCREW |
|
| 9. |
9014758000 |
FLANGE
BUTTON HEAD SCREW |
|
| 10. |
9436013000 |
WASHER |
|
| 11. |
9014754000 |
COVER |
|
| 12. |
9014757000 |
SILENT
BLOC |
|
| 13. |
9438345000 |
SPRING
WASHER |
|
| 13. |
3434099000 |
WASHER |
|
| 14. |
9430522000 |
NUT |
|
| 15. |
3434092005 |
CLAMP |
|
| 16. |
9014749000 |
TACHOMETER U/MIN |
|
| 16. |
9014750000 |
TACHOMETER RPM |
|
| 17. |
9014747000 |
SPEEDOMETER KM/H |
|
| 17. |
9014745000 |
SPEEDOMETER MILES |
|
| 18. |
3434091005 |
CLAMP |
|
| 19. |
9014753000 |
PILOT
LAMP, LEFT |
|
| 20. |
3434087000 |
CABLE HARNESS
FOR INSTRUMENTS |
|
| 21. |
9014743000 |
CLOCK |
|
| 22. |
3438120005 |
RUBBER
HOUSING |
|
| |
|
  PARTS
FOR USING THE NEW PANEL FOR OLDER MODELS
|
|
| |
3434094005 |
PANEL FOR
INSTRUMENTS COMPLETE KM/H |
|
| |
3434095005 |
PANEL FOR
INSTRUMENT COMPLETE MILES |
|
| 9. |
9014748000 |
FLANGE
BUTTON HEAD SCREW |
|
| 10. |
9436013000 |
WASHER |
|
| 12. |
9014757000 |
SILENT
BLOC |
|
| 13. |
9438345000 |
SPRING
WASHER |
|
| 13. |
3434099000 |
WASHER |
|
| 14. |
9430522000 |
NUT |
|
| |
9014759000 |
TEMPERATURE SENSOR |
|
| |
3438104500 |
FRONT
SHACKLE |
|
| |
3438116500 |
FRONT
FAIRING SHACKLE, RIGHT |
|
| |
3438115500 |
FRONT
FAIRING SHACKLE, LEFT |
|
|
