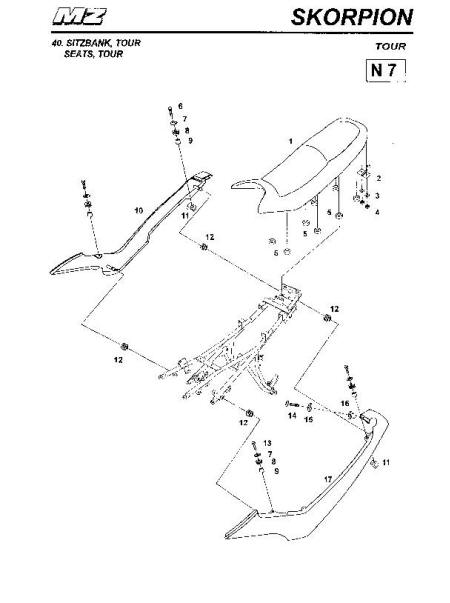

Seat Tour & Traveller
|
PART NUMBER |
DESCRIPTION |
|
| 1.
3431002000 |
SEAT
COMPLETE |
|
| 2.
3431031000 |
LOCK
SHACKLE COMPLETE |
|
| 3. |
RUBBER ELEMENT * |
|
| 4.
9403761000 |
HEXAGONAL BOLT |
|
| 5.
9013253000 |
BEARING
ELEMENT |
|
| 6.
9404096000 |
HEXAGONAL BOLT |
|
| 7.
9436062000 |
DISK |
|
| 8.
9013029000 |
RUBBER BUSH 9 NUMBER
2268 |
|
| 9.
3427038000 |
SLEEVE |
|
| 10.
3432017280 |
RIGHT FAIRING, BLACK |
|
|
3432017225 |
RIGHT
FAIRING, WHITE |
|
|
3432017240 |
RIGHT
FAIRING, YELLOW |
|
|
3432017270 |
RIGHT
FAIRING, BLUE |
|
|
3432017390 |
RIGHT FAIRING, GREEN |
|
|
3432017290 |
RIGHT
FAIRING, PEARLY GREEN |
|
|
3432017A45 |
RIGHT FAIRING, FERRARI
RED |
|
|
3432017A50 |
RIGHT FAIRING, LIGHT
RED |
|
| 11.
9013260000 |
PLATE
NUT |
|
| 12.
9013031000 |
HOOK
BUSH NUMBER 420 |
|
| 13.
9404006000 |
HEXAGONAL BOLT |
|
| 14.
9013488000 |
COUNTERSUNK SCREW |
|
| 15.
9013475000 |
WASHER
POLYAMIDE |
|
| 16.
9013267000 |
RUBBER
COLLAR NUT |
|
| 17.
3433032240 |
LEFT
FAIRING, YELLOW |
|
|
3433032270 |
LEFT
FAIRING, BLUE |
|
|
3433032290 |
LEFT
FAIRING, PEARLY GREEN |
|
|
3433032390 |
LEFT FAIRING, GREEN |
|
|
3433032280 |
LEFT FAIRING, METALLIC
BLACK |
|
|
3433032A45 |
LEFT FAIRING, FERRARI
RED |
|
|
3433032A50 |
LEFT FAIRING, LIGHT RED |
|
| |
|
|
|
* |
NOT DELIVERABLE |
|
|
