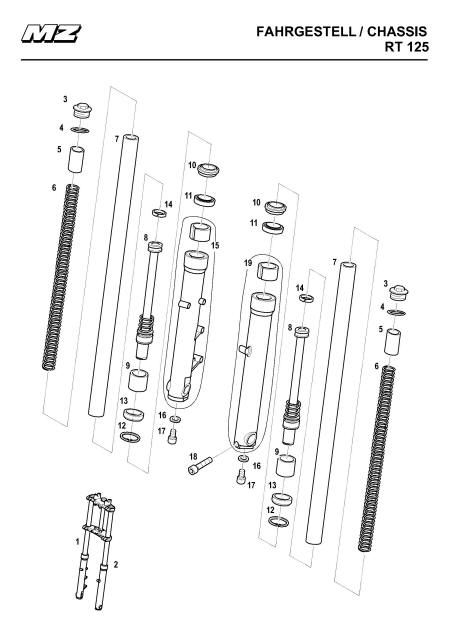

125 RT Front Fork

# Part Number Description Price Cart
1. 9016022000 SLIDER ASSY RIGHT
2. 9016021000 SLIDER ASSY LEFT
3. 9016101000 PIPE PLUG
4. 9016102000 SEALING RING
5. 9016103000 SPACER BUSH
6. 9016104000 PRESSURE SPRING
7. 9016098000 STANCHION TUBE
8. 9016105000 DAMPER ROD
9. 9016143000 SPACER SLEEVE
10. 9016100000 DUST SEAL
11. 9016135000 SEALING RING
12. 9016107000 RETAINING RING
13. 9016142000 STOP WASHER
14. 9016106000 BUSH RING
15. 9016097000 SLIDER RIGHT WITH BUSH
16. 9016108000 WASHER
17. 9016109000 M10x20 ALLEN SCREW
18. 9412444000 M8x40 ALLEN SCREW
19. 9016096000 SLIDER LEFT WITH BUSH
