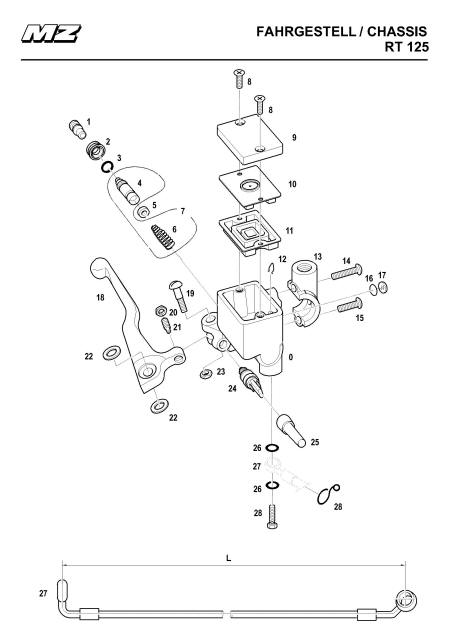

125 RT Front Master Cylinder

# Part Number Description Price Cart
  9016041000 MASTER CYLINDER COMPLETE, WITHOUT BRAKE SWITCH
  8050751000 GASKET SET
1. 8050752000 PRESSURE BOLT
2.   PACKING RING *
3.   GASKET *
4.   PISTON ***
5.   GASKET RING *
6. 8050756000 PRESSURE SPRING
7. 8050753000 PISTON c/w PRESSURE SPRING
8. 9021111000 COUNTERSUNK SCREW
9. 9021112000 LID
10. 9021113000 SUPPORTING PLATE
11.   DIAPHRAGM *
12.   PIN SPRING **
13. 8050759000 CLAMP
14. 9023032000 BUTTON HEAD SCREW M6x30
15. 8050737000 BUTTON HEAD SCREW M6x25
16.   O-RING *
17. 8050762000 INSPECTION GLASS
18. 9023030000 BRAKE LEVER
19. 8050760000 SLOTTED SCREW
20. 8050763000 NUT (SEE NUMBER 23.)
21. 9023031000 ADJUSTING SCREW
22. 9023033000 WASHER
23. 8050763000 FLAT NUT
24. 9546517000 FRONT BRAKE SWITCH
25. 9022176000 COVER FOR FRONT BRAKE SWITCH
26. 9013199000 GASKET RING
27. 3923010000 BRAKE LINE L=820mm
28. 9374016000 BANJO BOLT
29. 3923009000 BRAKE LINE HOLDER



*

ENCLOSED ON 8050751000 GASKET SET




**

NOT DELIVERABLE BY MZ




***

DELIVERABLE ONLY AS PART OF 8050753000
