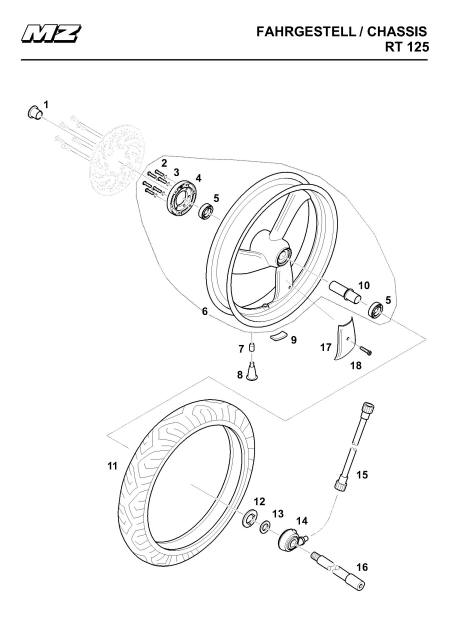

125 RT Front wheel

# PART NUMBER DESCRIPTION
1. 9016047000 DISTANCE SLEEVE
2. 9016225000 M8X25 BUTTON HEAD SCREW
3. 9014396000 LOCK WASHER
4. 9016046000 ADAPTER
5. 9013188000 62042RS BEARING
6. 9016040000 FRONT WHEEL COMPLETE
10. 9016043000 DISTANCE SLEEVE
11. FRONT TYRE 110/70H17 ....SOURCE LOCALLY
12. 9016044000 DRIVER
13. 9016045000 SEALING RING
14. 9013032000 SPEEDO DRIVE UNIT
15. 3934010000 SPEEDO CABLE
16. 9016048000 AXLE
