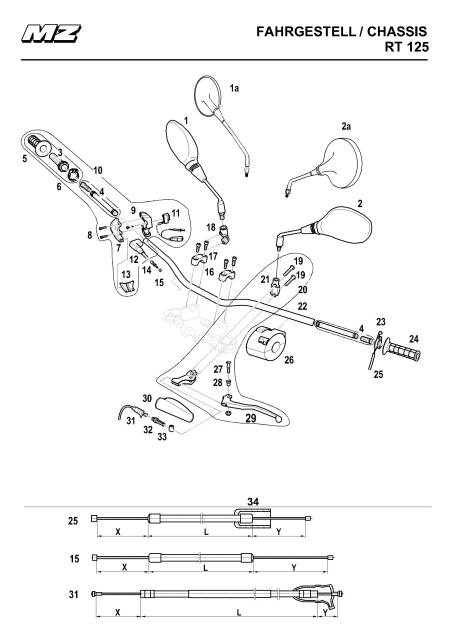

125 RT Handle Bars

# Part Number Description Price Cart
1.   3923021000 MIRROR RIGHT
2.   3923020000 MIRROR LEFT
3.   9023205000 TWIST GRIP TUBE COMPLETE
4.   9016117000 VIBRATION ABSORBER
5.   9023051000 GRIP RIGHT
6.   8050728000 CABLE HOLDER
7.   9022173000 REAR COVER FOR SWITCH
8.   8050737000 ALLEN SCREW
9.   9022175000 FRONT COVER FOR SWITCH
10.  9016018000 TWIST GRIP ASSY
11.  9022175000 RIGHT SIDE SWITCH
12.  9023053000 RUBBER CAP FOR TWIST GRIP
13.  8050733000 CABLE GUIDE
14.  8050724000 ADJUSTING SCREW
15.  3923012000 THROTTLE CABLE
16.  9016063610 UPPER HANDLEBAR CLAMP
17.  9013436000 M8x30 ALLEN SCREW
18.  8050759000 CLAMP
19.   INCLUDED IN #20
20.  9467688000 CLUTCH LEVER ASSY
21.  8050707000 SUPPORTING SHELL
22.  9016003000 HANDLE BAR
23.  9635245000 CHOKE LEVER
24.  9023050000 GRIP LEFT
25.  3923013000 STARTER/CHOKE CABLE
26.  9016180000 SWITCH COMBINATION
27.  8050738000 M10 SLOTTED SCREW
28.  8050708000 BUSH
29.  8050705000 CLUTCH LEVER
30.  9636455000 RUBBER CAP FOR CLUTCH CABLE
31.  3923006000 CLUTCH CABLE
32.  8050720000 ADJUSTING SCREW WITH NUT
33.  8050722000 NIPPLE FOR CLUTCH CABLE
34.  1629017000 RUBBER CAP FOR CHOKE CABLE
