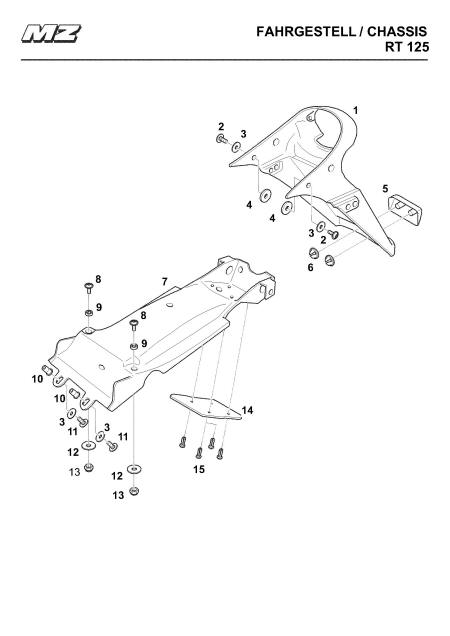

125 RT Rear Fender

# PART NUMBER DESCRIPTION Price Cart
1. 3930004000 REAR MUDGUARD
2. 9014380655 M5x16BUTTON HEAD SCREW
3. 9013344000 WASHER
4. 3430011000 RUBBER WASHER
5. 9013026000 REAR REFLECTOR RED
6. 9013071000 SPRING NUT
7. 3930006000 UNDER FENDER
8. 9014375655 M5x20 BUTTON HEAD SCREW
9. 3430010000 SPACER BUSH
10. 9014384000 M5 WELL NUT
11. 9013244000 M6x14 BUTTON HEAD SCREW
12. 9013305000 WASHER
13. 9014038000 HEX NUT
14. 3930010000 SEALING COVER
15. 9014471000 SPREAD RIVET
  3630013005 BOND STRIP
