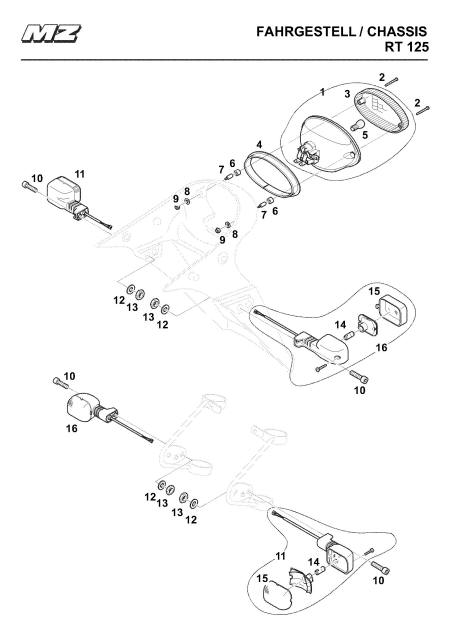

125 RT Rear Light

# Part Number Description Price Cart
1.   9016064000 TAIL LIGHT ASSY
2.   9016239000 M4x25 BUTTON HEAD SCREW*
3.   9023015000 LENS
4.   3934049000 RUBBER SEAL*
5.   8050546000 12V 21/5W BULB
6.   9016116000 SPACER
7.   9016038000 RUBBER STOPPER
8.   9437762000 SPRING WASHER
9.   9430282000 NUT
10.  9013283000 M6x16 ALLEN SCREW
11.  9014228000 INDICATOR LH FRONT/ RH REAR
12.  9436013000 WASHER
13.  9430098000 NUT
14.  8050581000 12V10W BULB
15.  9021092000 LENS ORANGE
16.  9014229000 INDICATOR RH FRONT/ LH REAR

*PLEASE NOTE*  PARTS 2 & 4 ARE NOT PART OF # 1
